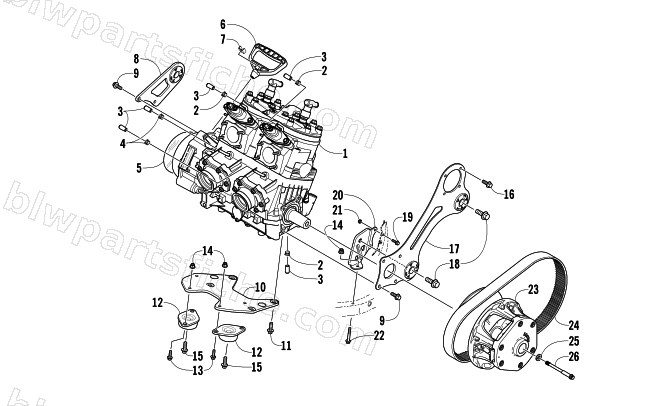

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — ENGINE AND RELATED PARTS
2012 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-579 | ENGINE,600 L/C-R | 1 | $4,457.95 | |
| 2 | 1623-234 | CLAMP, HOSE-13.08mm ID | 1 | $1.09 | |
| 3 | 0670-323 | PLUG,IMPULSE NIPPLE | 1 | $3.71 | |
| 4 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 5 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 6 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 7 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 8 | 0708-589 | PLATE,MTG-MAG-FAB | 1 | $141.95 | |
| 9 | 8409-821 | SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353 | 1 | $0.68 | |
| 10 | 0608-653 | MOUNT,ENGINE-FRT | 1 | $97.95 | |
| 11 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 12 | 0608-496 | MOUNT,ENGINE | 1 | $49.95 | |
| 13 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 8409-017 | SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353 | 1 | $1.92 | |
| 16 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 17 | 0708-588 | PLATE,MTG-PTO-FAB | 1 | $203.95 | |
| 18 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 19 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 20 | 0608-652 | MOUNT,LWR-REAR-W/NUT | 1 | $38.95 | |
| 21 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 22 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 0746-265 | CLUTCH,DRIVE-UNCAL-8.25 33M/CC | 1 | $583.95 | |
| 24 | 0627-085 | BELT, DRIVE-DCVS S6C-S 36.8W X 1223OC | 1 | $202.95 | |
| 25 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 26 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 |
