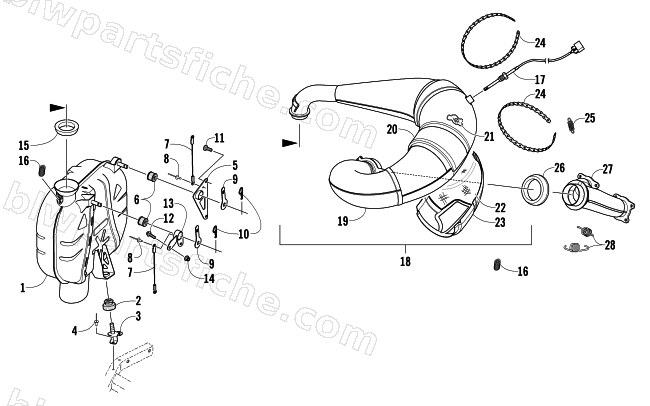

EXHAUST ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-774 | RESONATOR,EXHAUST-PTD BLK | 1 | $845.95 | |
| 2 | 1612-873 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $4.26 | |
| 3 | 1712-796 | BRKT,MTG-LWR RES/CHASSIS-PTD BLK | 1 | $22.01 | |
| 4 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 5 | 1712-800 | BRKT,EXH MTG-CHAIN CASE-PTD BLK | 1 | $20.63 | |
| 6 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 7 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 2612-347 | WASHER,RESONATOR-MTG-W/TAB(1.25 OD) | 1 | $3.16 | |
| 10 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 11 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 12 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 13 | 1712-798 | BRKT,EXH MTG-SPAR-PTD BLK | 1 | $30.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 16 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 17 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 18 | 1712-741 | CHAMBER,EXPANSION-600-FABR | 1 | $961.95 | |
| 19 | 1712-742 | CHAMBER,EXPANSION-600-CERAMIC COATED | 1 | $967.95 | |
| 20 | 2612-735 | COVER,EXP CHAMBER-UPR | 1 | $73.95 | |
| 21 | 2612-737 | PACKING,EXP CHAMBER-UPR | 1 | $13.73 | |
| 22 | 2612-738 | PACKING,EXP CHAMBER-LWR | 1 | $13.73 | |
| 23 | 2612-736 | COVER,EXP CHAMBER-LWR | 1 | $75.95 | |
| 24 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 24 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 25 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 26 | 2612-615 | GASKET,EXHAUST-HEADPIPE | 1 | $32.95 | |
| 27 | 1712-735 | MANIFOLD,EXHAUST-MACH | 1 | $228.95 | |
| 28 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 |
