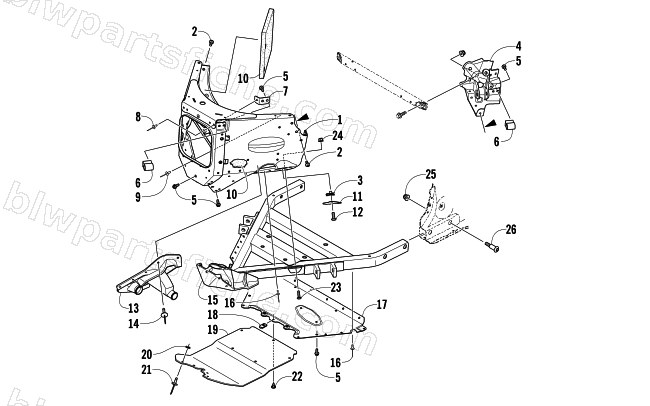

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — FRONT BUMPER AND FRAME ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-640 | PANEL,FRT-RACE ASSY-PTD BLK | 1 | $434.95 | |
| 2 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 1707-776 | HOUSING,A-ARM/SHOCK MTG-RH-PTD BLK | 1 | $106.95 | |
| 4 | 1707-777 | HOUSING,A-ARM/SHOCK MTG-LH-PTD BLK | 1 | $101.95 | |
| 5 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 6 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 7 | 1607-211 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $6.47 | |
| 8 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 10 | 0617-148 | FOAM,FRONT PANEL-RH | 1 | $6.47 | |
| 10 | 0617-149 | FOAM,FRONT PANEL-LH | 1 | $6.47 | |
| 11 | 1707-568 | COVER,SWAY BAR-PTD BLK | 1 | $5.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 13 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 14 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 15 | 1707-643 | R/B 1707-867 | 1 | $501.95 | |
| 16 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 17 | 1607-213 | BELLYPAN,CENTER-STAMPED | 1 | $56.95 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 1607-186 | PANEL,ACCESS-SKID PLATE | 1 | $34.95 | |
| 20 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 21 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 22 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 23 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 24 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 25 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 26 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 |
