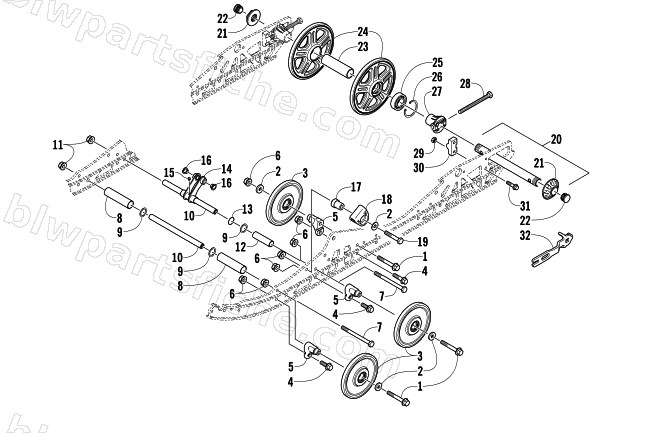

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — IDLER WHEEL ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 2 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 3 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 4 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 5 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 8 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 9 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 10 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 3604-581 | SPACER,ALUMINUM-2.698" | 1 | $5.09 | |
| 13 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 14 | 2704-208 | PIVOT,REAR SHOCK-FABR | 1 | $56.95 | |
| 15 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 16 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 17 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 18 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 19 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 20 | 1704-891 | AXLE,REAR-W/NUT-LH SIDE ASSY | 1 | $89.95 | |
| 21 | 2604-914 | NUT,AXLE | 1 | $22.01 | |
| 22 | 3606-799 | CLOSURE, TUBE -3/4OD X .584-.700ID BLK | 1 | $1.78 | |
| 23 | 2604-115 | SPACER, ALUM- 1.00 ID X 1.25 OD | 1 | $24.77 | |
| 24 | 3604-185 | WHEEL,IDLER-7.125 | 1 | $53.95 | |
| 25 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 26 | 1623-622 | RING,RETAINING-EXTERNAL-#206 | 1 | $5.51 | |
| 27 | 4604-087 | BUSHING,ADJUSTER | 1 | $17.87 | |
| 28 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 29 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 1704-379 | ADJUSTER,TRACK-MACH | 1 | $27.95 | |
| 31 | 1623-539 | SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z&Y | 1 | $17.87 | |
| 32 | 0644-558 | TOOL,TRACK TENSION | 1 | $6.61 |
