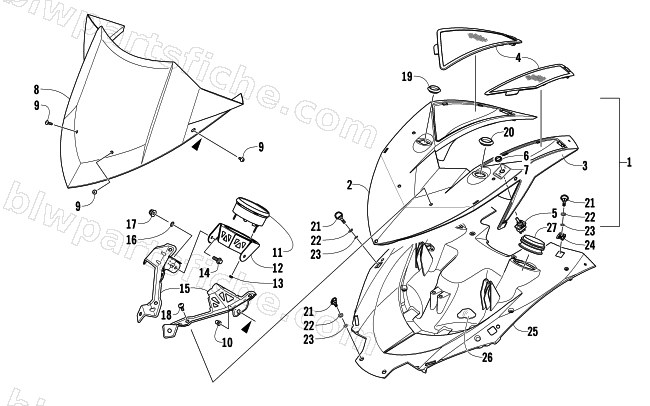

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — POD AND WINDSHIELD ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-639 | COWL,HEADLIGHT-CC W/DECALS | 1 | $168.95 | |
| 2 | 5706-385 | COWL,HEADLIGHT-BLK-ROUTED CC | 1 | $145.95 | |
| 3 | 0621-174 | DECAL,COWL-RH WHT | 1 | $34.95 | |
| 3 | 0621-103 | DECAL,COWL-LH GRN | 1 | $33.95 | |
| 4 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 4 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 5 | 0609-920 | SWITCH,TOGGLE-HEADLIGHT | 1 | $16.49 | |
| 6 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 7 | 9611-054 | DECAL,HEADLIGHT | 1 | $15.11 | |
| 8 | 6606-134 | WINDSHIELD,MID-BLACK | 1 | $145.95 | |
| 9 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 10 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 11 | 0620-379 | SPEEDO,AC 600 CC R CALIB-STANDARD | 1 | $524.95 | |
| 12 | 6606-418 | BRKT,GAUGE-CENTER (STD) | 1 | $65.95 | |
| 13 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 14 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 15 | 6606-130 | BRKT,GAUGE-RH | 1 | $20.63 | |
| 15 | 6606-131 | BRKT,GAUGE-LH | 1 | $11.79 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 1623-970 | PLUG,BUTTON W/ RECESSED HEAD-7/8"DIA | 1 | $1.92 | |
| 20 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 21 | 1623-746 | STUD, 1/4 TURN-9.8MM | 1 | $6.75 | |
| 22 | 1623-971 | WASHER,NYLON-M5 SELF RETAINING | 1 | $0.95 | |
| 23 | 1623-747 | RETAINER, RING-SPLIT | 1 | $2.88 | |
| 24 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 25 | 5706-456 | PLENUM,INTAKE-UPPER W/FOIL | 1 | $174.95 | |
| 26 | 6606-213 | FOIL,PROTECTIVE-PLENUM | 1 | $4.40 | |
| 27 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 |
