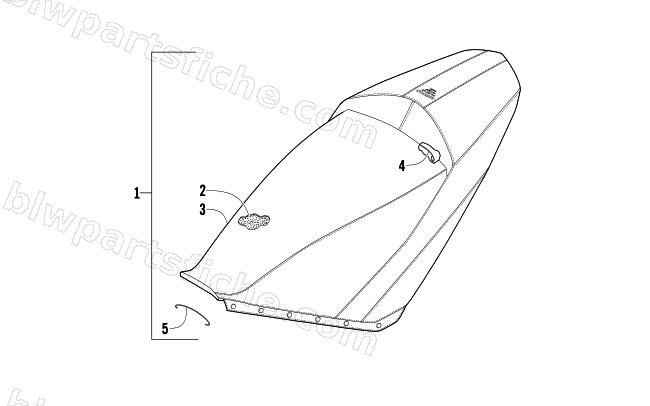

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — SEAT ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-248 | SEAT,RACE-ASSY | 1 | $445.95 | |
| 2 | 0717-206 | FOAM,SEAT-(75-80 ILD).48R@5.0 | 1 | $156.95 | |
| 3 | 5706-201 | COVER,SEAT | 1 | $333.95 | |
| 4 | 6606-363 | WIRE,SEAT-BENT-9.5" | 1 | $17.87 | |
| 5 | 5606-379 | WIRE,SEAT - 229 MM - FORMED | 1 | $0.40 |
