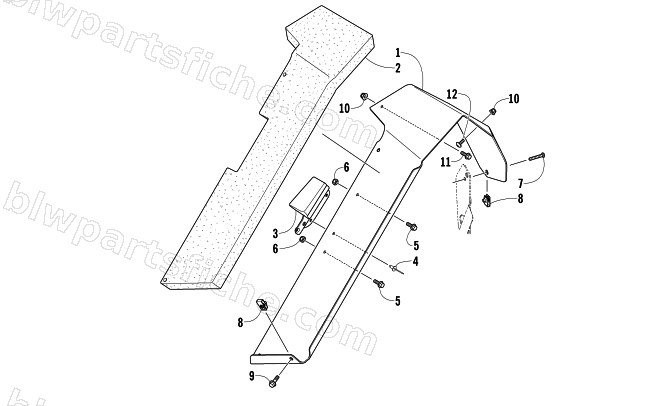

2012 Arctic Cat SNO PRO 600 — BELT GUARD ASSEMBLY
2012 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-448 | GUARD,CLUTCH-RACE | 1 | $89.95 | |
| 2 | 0617-676 | FOAM,CLUTCH GUARD | 1 | $116.95 | |
| 3 | 1712-141 | BRKT,EXHAUST MTG W/MOLDED BUMPER | 1 | $33.95 | |
| 4 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 5 | 8408-525 | SCREW,CAP-HFH M5X0.8X25 CL8.8 Z&Y | 1 | $0.95 | |
| 6 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 8 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 9 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 12 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
