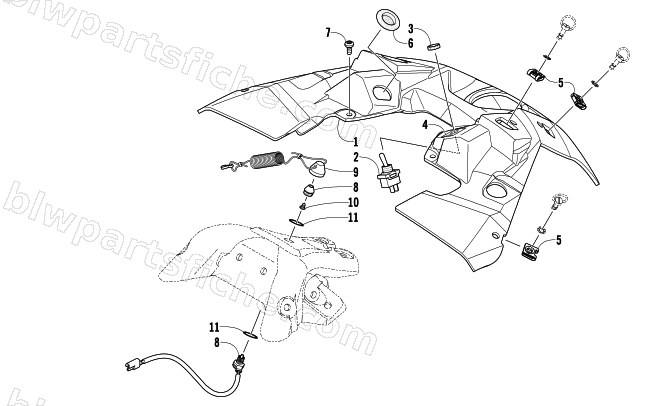

2012 Arctic Cat SNO PRO 600 — CONSOLE AND SWITCH ASSEMBLY
2012 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-425 | CONSOLE,UPPER-BLK | 1 | $193.95 | |
| 2 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 3 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 4 | 9611-053 | DECAL,TOGGLE SWITCH | 1 | $19.25 | |
| 5 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 6 | 1623-970 | PLUG,BUTTON W/ RECESSED HEAD-7/8"DIA | 1 | $1.92 | |
| 7 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 8 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 9 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 11 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
