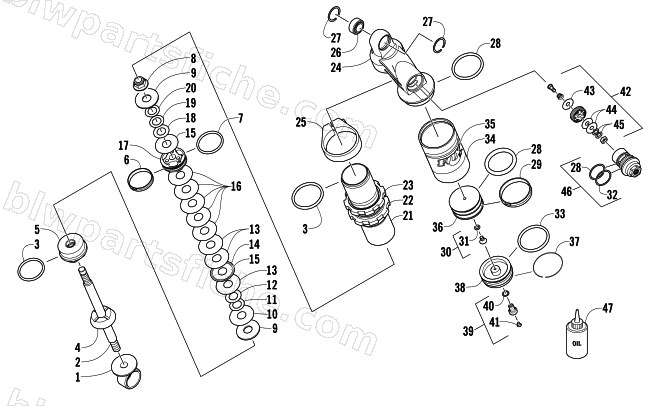

2012 Arctic Cat SNO PRO 600 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2012 SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-155 | SHOCK,FRT ARM-SNO CROSS 12.10" | 1 | $602.95 | |
| 1 | 3604-576 | EYELET,SHOCK-.700 W X 1.005 ID | 1 | $61.95 | |
| 2 | 3604-525 | SHAFT,SHOCK-.498 X 6.660" TLG | 1 | $91.95 | |
| 3 | 2603-849 | KIT,REBUILD-SEAL/BEARING - FRT A SHOCK | 1 | $153.95 | |
| 4 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2603-994 | BEARING,EXTERNAL GLIDE RING-1.459" BORE | 1 | $26.95 | |
| 7 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 8 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 11 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 12 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 13 | 0603-890 | VALVE, SHOCK 1.300 X.015(3/8ID) | 1 | $6.95 | |
| 14 | 3604-788 | VALVE,RING SHIM-1.25ODX1.11IDX.012THK | 1 | $17.95 | |
| 15 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 16 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 17 | 2603-987 | PISTON, HI FLOW-PM-NO BLEED | 1 | $37.95 | |
| 18 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 19 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 20 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 21 | 3604-729 | BODY,INTERNAL GROOVES-1.459"BOREX5.5"TLG | 1 | $184.95 | |
| 22 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 23 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 24 | 3604-522 | BODY,CAP-PIGGYBACK -102.5 DEG-ASSY | 1 | $408.95 | |
| 25 | 3604-532 | CLAMP,BODY CAP-1.90 ID X M5 | 1 | $81.95 | |
| 26 | 3604-526 | BEARING,SPHERICAL-.875 OD X .375 W | 1 | $89.95 | |
| 27 | 3604-527 | RING,RETAINING-SPIRAL-.021"X.926" OD | 1 | $13.73 | |
| 28 | 3604-539 | KIT,REBUILD-1.834" BORE-RESERVOIR | 1 | $200.95 | |
| 29 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 30 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 32 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 33 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 34 | 3604-528 | RESERVOIR,1.834 BORE X 3.25 TLG | 1 | $184.95 | |
| 35 | 3604-724 | DECAL,RESERVOIR-2.44 X 6.25 BRUSHED ALUM | 1 | $9.59 | |
| 36 | 3604-524 | PISTON,FLOATING-ASSY-1.834" BORE | 1 | $117.95 | |
| 37 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 38 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 39 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 40 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 41 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 42 | 3604-187 | DAMPING ADJUST ASSY,PISTON-CONCENTRIC AD | 1 | $265.95 | |
| 43 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 44 | 2603-501 | VALVE,SHOCK-.700 X.010(1/4ID) | 1 | $13.95 | |
| 45 | 3604-165 | WASHER,BACKUP-.400OD X .252ID X .020THK | 1 | $13.95 | |
| 46 | 2603-527 | CARTRIDGE,SINGLE ADJ-DAMP ADJ ASSY | 1 | $112.95 | |
| 47 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
