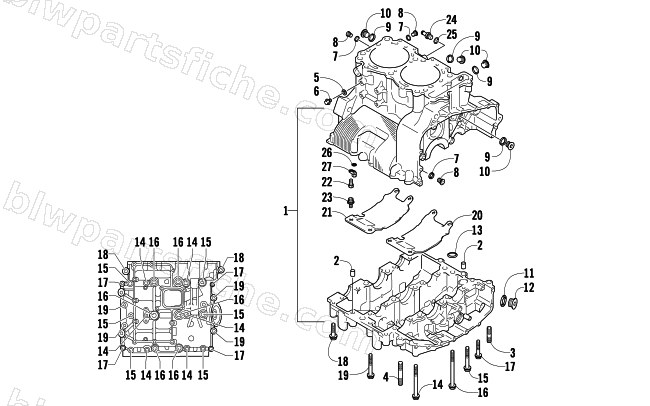

CRANKCASE ASSEMBLY
2012 TZ1 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-854 | CRANKCASE ASSY | 1 | $5,815.95 | |
| 2 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 3 | 3007-498 | BOLT,ENG MOUNT STUD(L:25) | 1 | $3.16 | |
| 4 | 3007-499 | BOLT,ENG MOUNT STUD(L:45) | 1 | $4.26 | |
| 5 | 3402-444 | GASKET | 1 | $6.06 | |
| 6 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 7 | 3007-083 | GASKET,OIL GAL PLUG(10X15X1) | 1 | $3.44 | |
| 8 | 3423-452 | PLUG, ROUND-HEAD | 1 | $26.95 | |
| 9 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 10 | 3007-501 | PLUG,OIL GALLERY(M18) | 1 | $15.11 | |
| 11 | 3403-106 | GASKET,IDLER SHAFT | 1 | $13.73 | |
| 12 | 3007-085 | PLUG,OIL GALLERY (M26) | 1 | $30.95 | |
| 13 | 3007-086 | O RING,CRANKCASE (ID:21,DD:2.5) | 1 | $3.99 | |
| 14 | 3007-087 | BOLT,CRANKCASE (8X90) | 1 | $9.59 | |
| 15 | 3007-088 | BOLT,CRANKCASE (8X70) | 1 | $3.95 | |
| 16 | 3007-681 | BOLT,CRANKCASE (10X105) | 1 | $9.59 | |
| 17 | 3007-411 | BOLT | 1 | $3.16 | |
| 18 | 3007-401 | BOLT | 1 | $3.44 | |
| 19 | 3007-408 | BOLT | 1 | $4.26 | |
| 20 | 3007-090 | PLATE,OIL SEPARATOR-R | 1 | $45.95 | |
| 21 | 3007-091 | PLATE,OIL SEPARATOR-L | 1 | $45.95 | |
| 22 | 3007-092 | BOLT,OIL SEP PLATE (6X12) | 1 | $2.95 | |
| 23 | 3007-855 | BOLT,OIL SEPARATOR PLATE (6X12) W/WASHER | 1 | $5.92 | |
| 24 | 3007-093 | UNION,WATER BYPASS HOSE | 1 | $30.95 | |
| 25 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 26 | 3423-051 | O RING | 1 | $2.75 | |
| 27 | 3007-094 | JET,PISTON COOLING | 1 | $54.95 |
