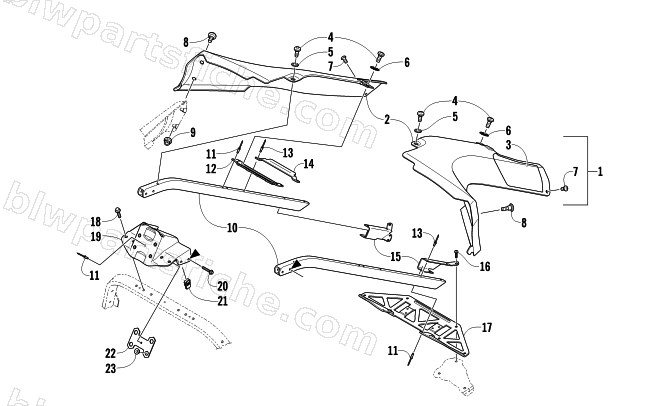

2012 Arctic Cat TZ1 LXR — SEAT SUPPORT ASSEMBLY
2012 TZ1 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-106 | SPAR,REAR-RH-BLK PTD CLR W/DECALS | 1 | $106.95 | |
| 1 | 3718-107 | SPAR,REAR-LH-BLK PTD CLR W/DECALS | 1 | $117.95 | |
| 2 | 4706-612 | SPAR,REAR BLK-RH-PTD CLEAR | 1 | $102.95 | |
| 2 | 4706-613 | SPAR,REAR BLK-LH-PTD CLEAR | 1 | $102.95 | |
| 3 | 9611-416 | DECAL,REAR SPAR-RH | 1 | $24.95 | |
| 3 | 9611-417 | DECAL,REAR SPAR-LH | 1 | $24.95 | |
| 4 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 5 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 6 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 7 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 5606-092 | TUBE,SUPPORT-NON-ADJUST-RH | 1 | $77.95 | |
| 10 | 5706-049 | TUBE,SUPPORT-NON ADJUST-LH MACH | 1 | $54.95 | |
| 11 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 12 | 4606-329 | BRKT,CROSSOVER | 1 | $29.95 | |
| 13 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 14 | 6606-096 | BRKT,CROSSOVER | 1 | $15.11 | |
| 15 | 5606-096 | BRKT,NON-ADJUST-SEATBASE RH | 1 | $29.95 | |
| 15 | 5606-097 | BRKT,NON-ADJUST-SEATBASE LH | 1 | $29.95 | |
| 16 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 17 | 5606-094 | PLATE,SUPPORT-LOWER | 1 | $57.95 | |
| 18 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 19 | 4606-328 | BRKT,SUPPORT-UPPER-SPR-FABR | 1 | $105.95 | |
| 20 | 8408-535 | SCREW, CAP-HFH M5X0.8X35 CL8.8 Z&Y | 1 | $2.06 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 0605-948 | BRKT,NUT HOLDER | 1 | $20.63 | |
| 23 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
