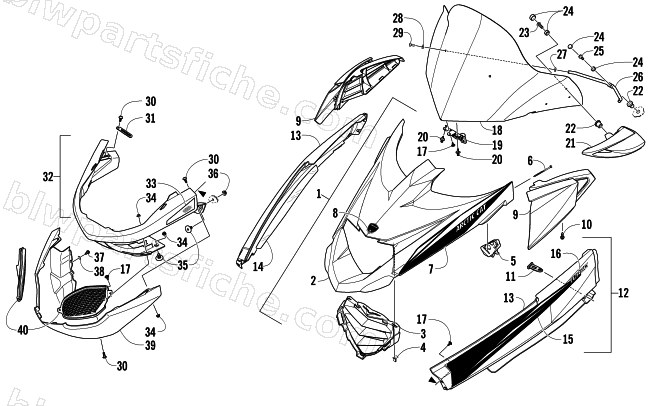

2012 Arctic Cat TZ1 TURBO LXR LTD — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2012 TZ1 TURBO LXR LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-112 | LID,HOOD-TURBO-DESERT RED W/DECALS | 1 | $340.95 | |
| 2 | 7800-831 | LID,HOOD-TURBO-CANDY RED-MFG ASSY | 1 | $197.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 9611-418 | DECAL,HOOD-RH | 1 | $49.95 | |
| 7 | 9611-419 | DECAL,HOOD-LH | 1 | $47.95 | |
| 8 | 9611-399 | DECAL,EMBLEM-50TH ANNIVERSARY-CHROME | 1 | $32.95 | |
| 9 | 6606-250 | BEZEL,INTAKE-RH-DESERT RED-ASSY | 1 | $73.95 | |
| 9 | 6606-251 | BEZEL,INTAKE-LH-DESERT RED-ASSY | 1 | $73.95 | |
| 10 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 11 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 12 | 3718-110 | SPAR,FRONT-RH-BLK PTD CLR W/DECALS | 1 | $125.95 | |
| 12 | 3718-111 | SPAR,FRONT-LH-BLK PTD CLR W/DECALS | 1 | $143.95 | |
| 13 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 13 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 14 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 15 | 9611-414 | DECAL,FRONT SPAR-RH | 1 | $50.95 | |
| 15 | 9611-415 | DECAL,FRONT SPAR-LH | 1 | $50.95 | |
| 16 | 9611-420 | DECAL,SPAR-"TURBO" | 1 | $19.25 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 5606-670 | WINDSHIELD,TURBO-HIGH W/HOLES TINT W/BLK | 1 | $258.95 | |
| 19 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 26 | 4706-805 | SUPPORT,WINDSHIELD-TURBO HIGH-PTD BLK | 1 | $22.01 | |
| 27 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 28 | 1623-837 | WASHER,RUBBER-8X19X3 | 1 | $9.10 | |
| 29 | 1623-842 | SCREW,MACH-TSTRH-M8X1.25X16-Z&BLK-W/203 | 1 | $5.09 | |
| 30 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 3718-039 | BUMPER,FRONT CLIP-CA RED W/REFLECTORS | 1 | $168.95 | |
| 33 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 33 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 34 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 35 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 36 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 37 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 38 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 39 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 40 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 40 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
