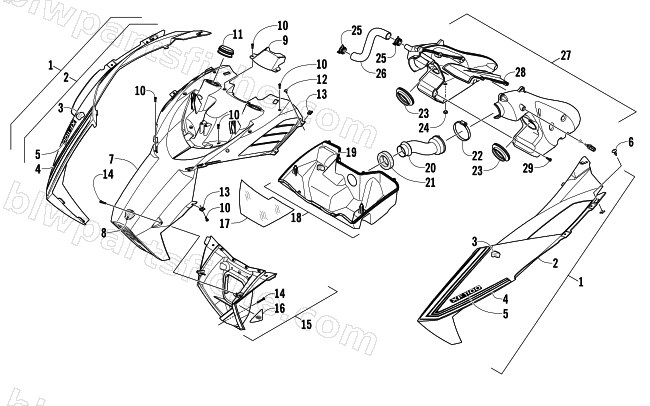

2012 Arctic Cat XF 1100 SNO PRO ANNIVERSARY — HOOD AND AIR INTAKE ASSEMBLY
2012 XF 1100 SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-240 | HOOD,W/DECALS-RH-BLK (XF1100 ANV) | 1 | $212.95 | |
| 1 | 3718-241 | HOOD,W/DECALS-LH-BLK (XF1100 ANV) | 1 | $212.95 | |
| 2 | 3718-486 | HOOD,W/FOIL-4 STRK RH-BLK | 1 | $150.95 | |
| 2 | 3718-313 | HOOD,W/FOIL-LH-BLK | 1 | $159.95 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 4 | 9611-614 | DECAL,HOOD-RH (ANV) | 1 | $65.95 | |
| 4 | 9611-615 | DECAL,HOOD-LH (ANV) | 1 | $60.95 | |
| 5 | 9611-617 | DECAL,HOOD-XF1100 (ANV) | 1 | $24.77 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 6606-383 | PLENUM,AIR INTAKE COVER-UPPER-N/A | 1 | $200.95 | |
| 8 | 9611-603 | DECAL,EMBLEM-50TH ANNIVERSARY-GRN | 1 | $32.95 | |
| 9 | 5706-229 | GUARD,STEERING-PTD BLK | 1 | $13.73 | |
| 10 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 11 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 14 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 15 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 16 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 17 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 18 | 5706-372 | PLENUM,INTAKE-LWR-REAR-ASSY | 1 | $88.95 | |
| 19 | 6606-419 | FOIL,INTAKE PLENUM-LOWER-NA | 1 | $16.49 | |
| 20 | 2670-164 | BOOT,SILENCER AIR INTAKE (Z1 NA) | 1 | $92.95 | |
| 21 | 0617-644 | SEAL,FOAM-AIR SILENCER | 1 | $3.02 | |
| 22 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 23 | 2670-161 | BOOT,THROTTLE BODY (Z1 NA) | 1 | $20.63 | |
| 24 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 25 | 1623-291 | CLAMP,HOSE-SPRING (12W X 28) | 1 | $3.57 | |
| 26 | 0610-852 | HOSE,BREATHER-VENT-N/A | 1 | $20.63 | |
| 27 | 2670-160 | SILENCER,AIR ASSY-4 STRK (NA) | 1 | $120.95 | |
| 28 | 2670-183 | BAFFLE,AIR SILENCER | 1 | $20.63 | |
| 29 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 |
