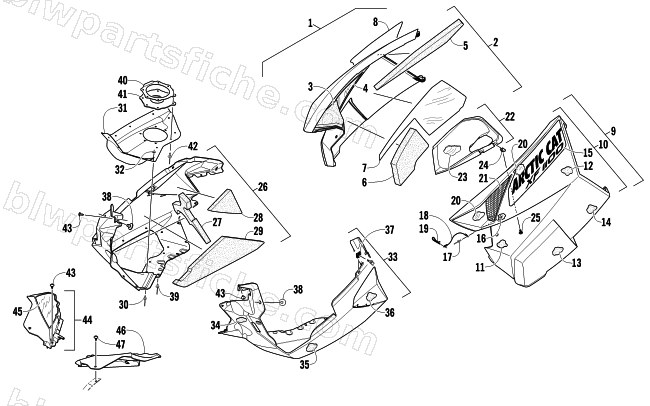

2012 Arctic Cat XF 1100 SNO PRO LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 XF 1100 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-250 | PANEL,SIDE-RH W/DECALS-PC PRL WHT(XF11) | 1 | $331.95 | |
| 2 | 3718-246 | PANEL,SIDE-RH WITH FOAM-PC PRL WHT | 1 | $284.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 9611-622 | DECAL,SIDE PANEL-UPR RH-WHT (XF1100 LTD) | 1 | $97.95 | |
| 9 | 3718-251 | PANEL,SIDE-LH W/DECALS-PC PRL WHT(XF11) | 1 | $331.95 | |
| 10 | 3718-335 | PANEL,SIDE-LH W/FOAM(LTD PC WHT) | 1 | $282.95 | |
| 11 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 12 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 13 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 9611-623 | DECAL,SIDE PANEL-UPR LH-WHT (XF1100 LTD) | 1 | $94.95 | |
| 16 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 17 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 18 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 19 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 20 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 21 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 22 | 1702-279 | DUCT,AIR-CLUTCH W/FOIL | 1 | $42.95 | |
| 23 | 6606-462 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $2.88 | |
| 24 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 25 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 26 | 3718-254 | PLATE,SKID-REAR RH WITH FOAM-PC PRL WHT | 1 | $457.95 | |
| 27 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 28 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 29 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 30 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 31 | 1712-723 | DEFLECTOR,HEAT-PTD-PC PRL WHT | 1 | $421.95 | |
| 32 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 33 | 3718-255 | PLATE,SKID-REAR LH WITH FOAM-PC PRL WHT | 1 | $244.95 | |
| 34 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 35 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 36 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 37 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 38 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 39 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 40 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 41 | 2612-669 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $19.25 | |
| 42 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 43 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 44 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 45 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 46 | 6606-343 | PANEL,FILLER-LH BLK | 1 | $19.25 | |
| 47 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
