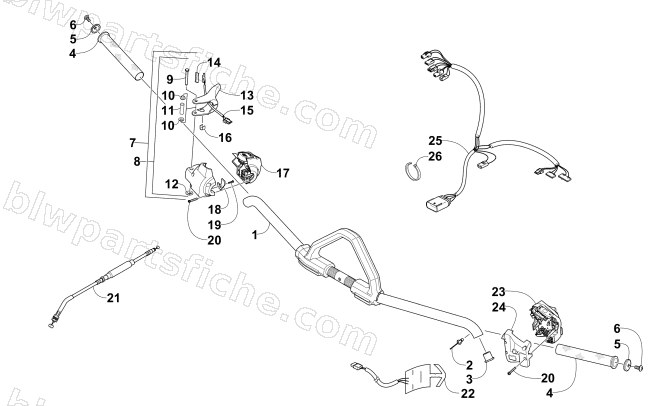

HANDLEBAR AND CONTROLS
2012 XF 1100 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-493 | HANDLEBAR W/INSERTS-ASSY | 1 | $171.95 | |
| 2 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 3 | 0605-945 | INSERT,HANDLEBAR-INJ MOLD | 1 | $3.44 | |
| 4 | 4606-945 | GRIP,HANDLEBAR-6.25" | 1 | $17.87 | |
| 5 | 1623-754 | WASHER,BACKING-7MM IDX11/8OD-INJ MOLD | 1 | $1.64 | |
| 6 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 7 | 0609-882 | CONTROL,THROTTLE-R/H-REAR (34MM) | 1 | $105.95 | |
| 8 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 12 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 13 | 0609-795 | LEVER, THROTTLE-34MM | 1 | $46.95 | |
| 14 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 15 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 16 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 17 | 0609-884 | CONTROL, R/H-FRONT W/REV-4 STRK (2010) | 1 | $94.95 | |
| 18 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 19 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 20 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 21 | 0687-232 | CABLE,THROTTLE-SINGLE 4S 660MM | 1 | $62.95 | |
| 22 | 0609-856 | ELEMENT,HW-RH H/L | 1 | $46.95 | |
| 22 | 0609-857 | ELEMENT,HW-LH H/L | 1 | $46.95 | |
| 23 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 24 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 25 | 1686-637 | HARNESS,HANDLEBAR-4 STRK | 1 | $126.95 | |
| 26 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
