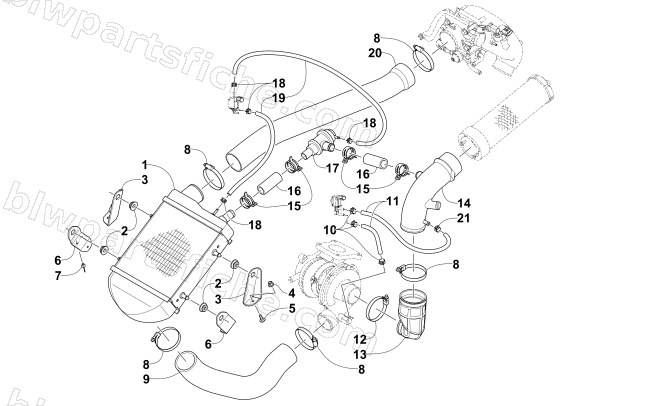

INTERCOOLER ASSEMBLY
2012 XF 1100 TURBO LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-171 | INTERCOOLER-TURBO | 1 | $397.95 | |
| 2 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 3 | 2670-172 | BRKT,INTERCOOLER-REAR-RH | 1 | $16.49 | |
| 3 | 2670-173 | BRKT,INTERCOOLER-REAR-LH | 1 | $16.49 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 6 | 2670-199 | BRKT,INTERCOOLER-FRONT | 1 | $8.21 | |
| 7 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 8 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 9 | 0610-848 | HOSE,INTERCOOLER INLET | 1 | $119.95 | |
| 10 | 1623-966 | CLAMP,HOSE - #CTL-8 | 1 | $2.06 | |
| 11 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 | |
| 12 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 13 | 2670-198 | BOOT,TURBO-COMPRESSOR INLET | 1 | $58.95 | |
| 14 | 2670-167 | INTAKE, TURBO | 1 | $54.95 | |
| 15 | 1623-292 | CLAMP,HOSE-SPRING (12W X 29) | 1 | $3.99 | |
| 16 | 0610-837 | HOSE,ABV INLET | 1 | $19.25 | |
| 17 | 3007-820 | VALVE,AIR BYPASS | 1 | $277.95 | |
| 18 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 19 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 20 | 0610-847 | HOSE,INTERCOOLER OUTLET | 1 | $62.95 | |
| 21 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 |
