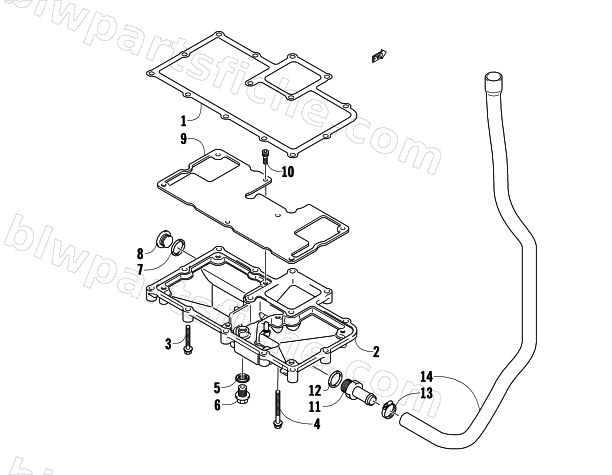

2012 Arctic Cat XF 1100 TURBO SNO PRO ANNIVERSARY — OIL PAN ASSEMBLY
2012 XF 1100 TURBO SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-099 | GASKET,OIL PAN | 1 | $30.95 | |
| 2 | 3007-100 | PAN,OIL | 1 | $230.95 | |
| 3 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 4 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 5 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 6 | 3007-101 | PLUG,OIL DRAIN (12X16) | 1 | $17.87 | |
| 7 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 8 | 3007-501 | PLUG,OIL GALLERY(M18) | 1 | $15.11 | |
| 9 | 3007-102 | PLATE,OIL PAN | 1 | $30.95 | |
| 10 | 3007-092 | BOLT,OIL SEP PLATE (6X12) | 1 | $2.95 | |
| 11 | 3007-093 | UNION,WATER BYPASS HOSE | 1 | $30.95 | |
| 12 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 13 | 3007-856 | CLAMP,BREATHER HOSE | 1 | $19.25 | |
| 14 | 3007-507 | HOSE,BREATHER TANK OIL RETURN | 1 | $66.95 |
