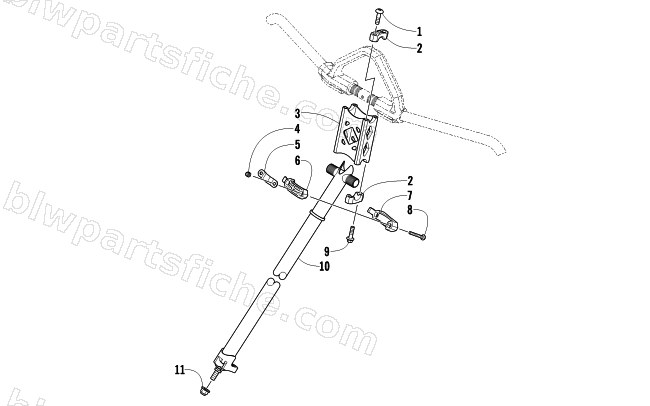

STEERING POST ASSEMBLY
2012 XF 1100 TURBO SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8477-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&BLK | 1 | $1.78 | |
| 2 | 1705-461 | CAP,STEERING-PTD BLK | 1 | $15.11 | |
| 3 | 1705-407 | RISER,6.5 HANDLEBAR-PTD BLK | 1 | $88.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 6 | 1605-043 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 7 | 1605-044 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 8 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 9 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 10 | 1705-309 | R/B 1705-522 | 1 | $122.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
