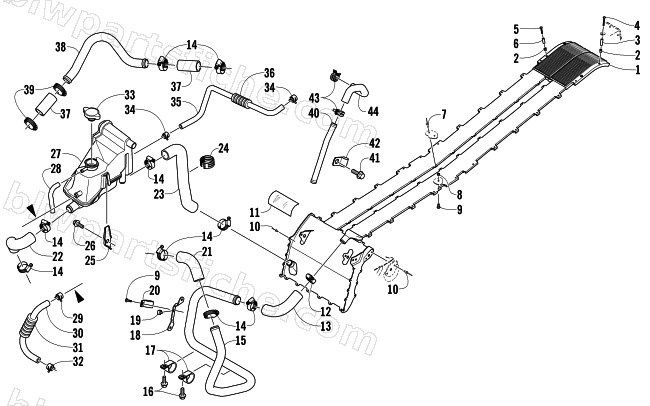

2012 Arctic Cat XF 1100 TURBO SNO PRO — COOLING ASSEMBLY
2012 XF 1100 TURBO SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-053 | EXCH,HEAT-4 STRK 141"-W/INSERT | 1 | $663.95 | |
| 2 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 3 | 0613-052 | SPACER,STANDOFF-30.18MM | 1 | $1.23 | |
| 4 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 5 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 6 | 0613-053 | SPACER,STANDOFF-27.00MM | 1 | $1.23 | |
| 7 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 8 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 9 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 10 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 11 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 12 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 13 | 0610-866 | HOSE,COOLANT-TUBE/EXCH | 1 | $13.73 | |
| 14 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 15 | 0613-050 | TUBE,COOLANT-ENG/EXCH-FORMED | 1 | $39.95 | |
| 16 | 8409-017 | SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353 | 1 | $1.92 | |
| 17 | 1623-916 | CLAMP,CABLE-1" INSUL-.406 MTG | 1 | $3.85 | |
| 18 | 0608-668 | BRKT,SUPPORT-COOLANT TUBE | 1 | $12.35 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 21 | 0610-865 | HOSE,COOLANT-THERMO/TUBE | 1 | $12.35 | |
| 22 | 0610-849 | HOSE,COOLANT-ENGINE/TANK | 1 | $15.11 | |
| 23 | 0610-842 | HOSE,COOLANT-EXCH/TANK IN | 1 | $20.63 | |
| 24 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 25 | 0613-048 | BRKT,MTG-COOLANT TANK | 1 | $3.85 | |
| 26 | 8408-026 | SCREW,CAP-HFH M10X1.25X25 CL8.8 W/2353 | 1 | $3.85 | |
| 27 | 0613-070 | TANK,COOLANT/SEPERATOR-TURBO | 1 | $247.95 | |
| 28 | 0610-818 | HOSE,GASLINE-FORMED-FILTER TO TANK | 1 | $15.11 | |
| 29 | 1623-973 | CLAMP,HOSE - NOM OD 19.1 - #CTL-12 | 1 | $1.92 | |
| 30 | 0610-845 | HOSE,COOLANT-TURBO | 1 | $19.25 | |
| 31 | 1619-356 | LOOM,HIGH TEMP-3/4"X5' | 1 | $59.95 | |
| 32 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 33 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 34 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 35 | 0610-841 | HOSE,COOLANT-BYPASS-TURBO | 1 | $13.73 | |
| 36 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 37 | 0610-840 | HOSE,25.4mm DIA X 75mm-SAE J30 | 1 | $12.35 | |
| 38 | 0613-049 | TUBE,COOLANT-HEAD/PUMP-FORMED | 1 | $24.77 | |
| 39 | 3007-857 | CLAMP,WATER HOSE | 1 | $27.95 | |
| 40 | 0613-051 | TUBE , COOLANT - THERMOSTAT/ WATER PUMP | 1 | $24.77 | |
| 41 | 3007-825 | BOLT,WATER PIPE | 1 | $4.68 | |
| 42 | 1623-924 | CLAMP,CABLE - .687 X .531 | 1 | $3.95 | |
| 43 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 44 | 0610-867 | HOSE,WATER BYPASS NO. 1 | 1 | $12.35 |
