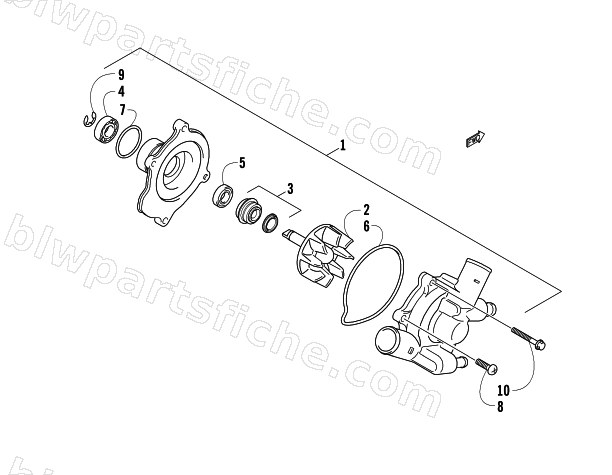

2012 Arctic Cat XF 1100 TURBO SNO PRO — WATER PUMP ASSEMBLY
2012 XF 1100 TURBO SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-178 | PUMP ASSY,WATER | 1 | $517.95 | |
| 2 | 3007-179 | IMPELLER/SHAFT | 1 | $93.95 | |
| 3 | 3007-180 | SEAL,MECHANICAL | 1 | $52.95 | |
| 4 | 3003-615 | BEARING,OIL PUMP DRIVESHAFT,M10X26X8 | 1 | $34.95 | |
| 5 | 3402-465 | OIL SEAL (M10X21X5) | 1 | $16.49 | |
| 6 | 3007-181 | O RING | 1 | $13.73 | |
| 7 | 3423-404 | O RING | 1 | $22.01 | |
| 8 | 3007-511 | SCREW | 1 | $2.47 | |
| 9 | 3007-512 | E RING | 1 | $3.71 | |
| 10 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 |
