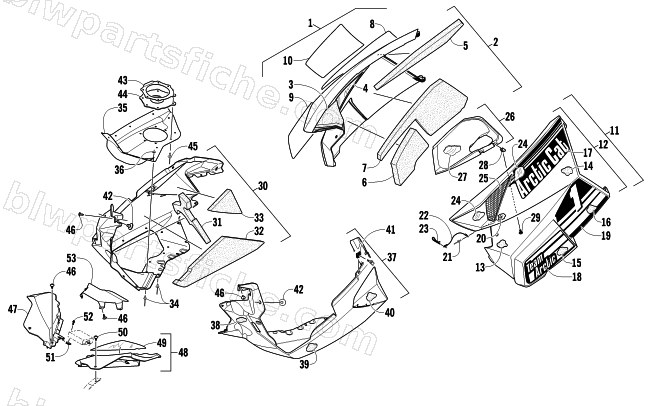

2012 Arctic Cat XF 800 SNO PRO ANNIVERSARY — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 XF 800 SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-330 | PANEL,SIDE-RH W/DECALS(800 ANV) | 1 | $313.95 | |
| 2 | 3718-180 | PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) | 1 | $267.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 9611-604 | DECAL,SIDE PANEL-UPR RH-BLK (ANV) | 1 | $27.95 | |
| 9 | 9611-608 | DECAL,SIDE PANEL-FWD-RH-BLK (ANV) | 1 | $19.25 | |
| 10 | 9611-606 | DECAL,SIDE PANEL-LWR-RH-BLK (ANV) | 1 | $71.95 | |
| 11 | 3718-331 | PANEL,SIDE-LH W/DECALS(800 ANV) | 1 | $313.95 | |
| 12 | 4718-101 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 13 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 16 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 17 | 9611-605 | DECAL,SIDE PANEL-UPR LH-BLK (ANV) | 1 | $27.95 | |
| 18 | 9611-609 | DECAL,SIDE PANEL-FWD-LH-BLK (ANV) | 1 | $33.95 | |
| 19 | 9611-607 | DECAL,SIDE PANEL-LWR-LH-BLK (ANV) | 1 | $69.95 | |
| 20 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 21 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 22 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 23 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 24 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 25 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 26 | 1702-279 | DUCT,AIR-CLUTCH W/FOIL | 1 | $42.95 | |
| 27 | 6606-462 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $2.88 | |
| 28 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 29 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 30 | 3718-234 | PLATE,SKID-REAR RH WITH FOAM | 1 | $360.95 | |
| 31 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 32 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 33 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 34 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 1712-722 | DEFLECTOR,HEAT-PTD PWD CT BLK | 1 | $161.95 | |
| 36 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 37 | 3718-235 | PLATE,SKID-REAR LH WITH FOAM | 1 | $110.95 | |
| 38 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 39 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 40 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 41 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 42 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 43 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 44 | 2612-554 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $19.25 | |
| 45 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 46 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 47 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 48 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 49 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 50 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 51 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 52 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 53 | 6606-295 | SHIELD,HEAT-ECU | 1 | $24.95 |
