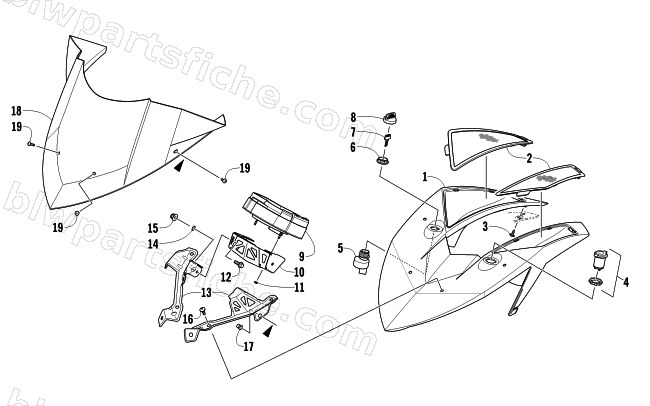

2012 Arctic Cat XF 800 SNO PRO LTD — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2012 XF 800 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-151 | COWLING,HEADLIGHT-PTD PC PRL WHT | 1 | $283.95 | |
| 2 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 2 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 3 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 9 | 0620-391 | SPEEDO/TACH-PREMIUM-CALIB (XF/M) | 1 | $683.95 | |
| 10 | 5706-252 | BRKT,GAUGE-CENTER-PTD BLK | 1 | $32.95 | |
| 11 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 12 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 13 | 5706-250 | BRKT,GAUGE-RH-PTD BLK | 1 | $22.01 | |
| 13 | 5706-251 | BRKT,GAUGE-LH-PTD BLK | 1 | $22.01 | |
| 14 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 17 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 18 | 6606-393 | WINDSHIELD,LOW-ANNIVERSARY ORN | 1 | $140.95 | |
| 19 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
