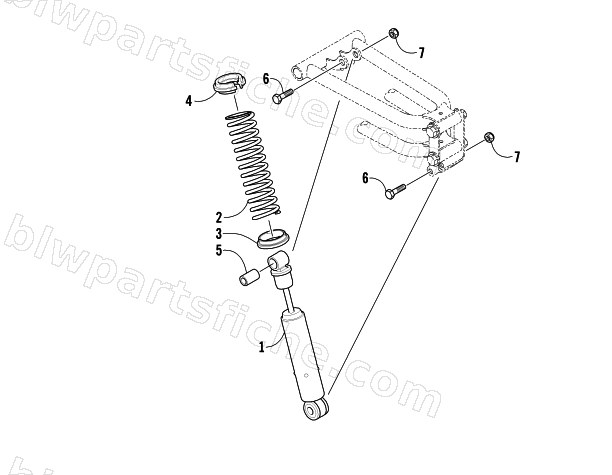

FRONT SUSPENSION SHOCK ABSORBER
2013 AC SNO PRO 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-517 | SHOCK ABSORBER - SKI- F 120 | 1 | $150.95 | |
| 2 | 2703-397 | SPRING, COMPRESSION-PTD WHITE | 1 | $42.95 | |
| 3 | 0403-027 | RETAINER,SPRING-LWR | 1 | $6.20 | |
| 4 | 2603-520 | RETAINER-UPPER SPRING | 1 | $2.61 | |
| 5 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 6 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 7 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 |
