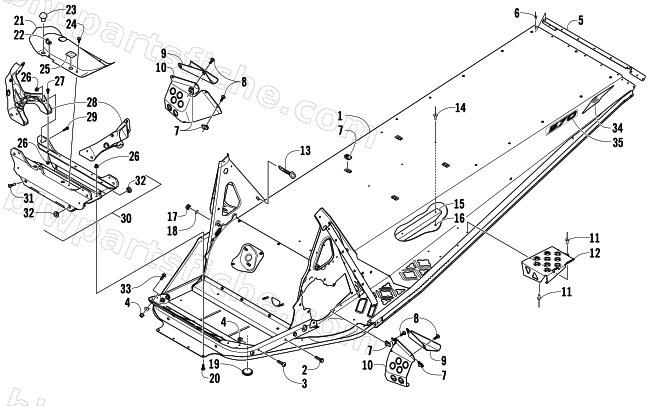

CHASSIS ASSEMBLY
2013 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-332 | CHASSIS,570 XT-SPR ASSY | 1 | $2,646.95 | |
| 2 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 3 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 5606-515 | CLOSE-OFF,REAR TUNNEL-BCWT | 1 | $37.95 | |
| 6 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 7 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 8 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 9 | 3606-920 | BRKT, TOE HOOK-RH | 1 | $19.25 | |
| 9 | 3606-921 | BRKT, TOE HOOK-LH | 1 | $19.25 | |
| 10 | 3606-710 | SHIELD, TOE-RH | 1 | $69.95 | |
| 10 | 3606-711 | SHIELD, TOE-LH | 1 | $69.95 | |
| 11 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 12 | 5606-580 | FOOTREST, PASSENGER-RH | 1 | $54.95 | |
| 12 | 5606-581 | FOOTREST, PASSENGER-LH | 1 | $54.95 | |
| 13 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 13 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 14 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 15 | 4706-508 | WEARSTRIP,TUNNEL-BC XT 570 | 1 | $43.95 | |
| 16 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 19 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 20 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 21 | 4706-300 | CLOSE OFF,COVER-FRONT END-PTD BLK | 1 | $75.95 | |
| 22 | 4606-770 | TAB,RESONATOR MTG | 1 | $9.59 | |
| 23 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 24 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 25 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 26 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 27 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 28 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 28 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 29 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 30 | 1707-170 | BRKT, FRT SUSP MTG-W/BUSHINGS | 1 | $465.95 | |
| 31 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 32 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 33 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 34 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 34 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 35 | 9611-763 | DECAL,TUNNEL-570-BLUE | 1 | $21.95 |
