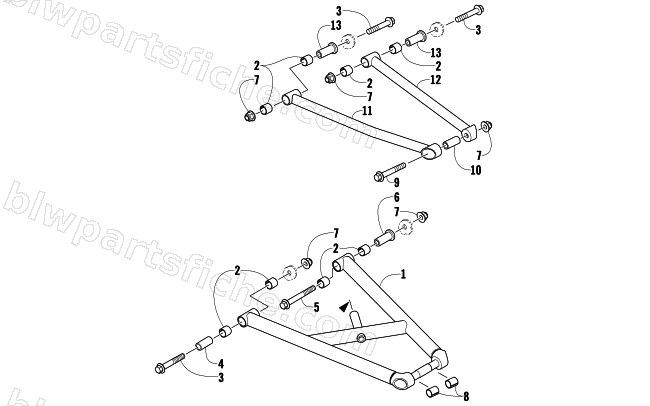

A-ARM ASSEMBLY
2013 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-334 | A-ARM, LWR-FABR PTD BLK) | 1 | $191.95 | |
| 2 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 3 | 8408-070 | SCREW,CAP-HFH M10X1.25X70 CL8.8 Z&Y | 1 | $2.06 | |
| 4 | 2603-544 | AXLE, A-ARM-LWR-FRONT | 1 | $2.88 | |
| 5 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 6 | 2603-543 | AXLE, A-ARM-LWR-REAR | 1 | $3.99 | |
| 7 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 2603-577 | BRG, GARLOCK SPLIT-LWR ARM | 1 | $6.47 | |
| 9 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 10 | 2603-643 | AXLE,SPINDLE UPR A-ARM-OUTER | 1 | $3.30 | |
| 11 | 2703-328 | ARM,UPPER-FRT-FAB | 1 | $85.95 | |
| 12 | 2703-329 | ARM,UPPER-REAR-FAB | 1 | $85.95 | |
| 13 | 2603-634 | AXLE,A-ARM-UPPER-INNER | 1 | $3.71 |
