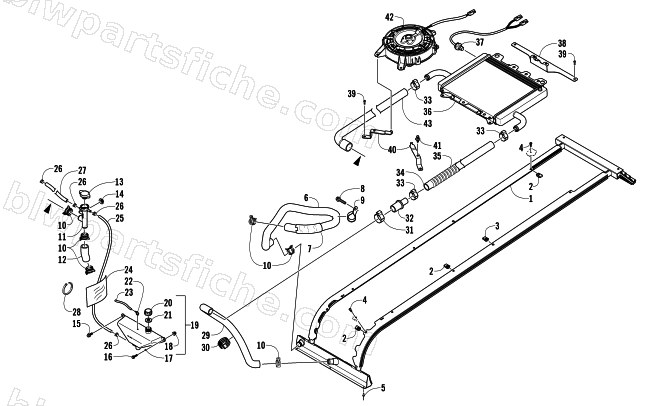

COOLING ASSEMBLY
2013 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-111 | EXCHANGER, HEAT-WELDT-BCWT | 1 | $573.95 | |
| 2 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 0610-757 | HOSE,COOLANT-ENG TO EXCH | 1 | $117.95 | |
| 7 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 8 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 4606-388 | BRKT, COOLANT HOSE | 1 | $19.25 | |
| 10 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 11 | 1670-998 | NECK,FILLER-COOLANT | 1 | $17.87 | |
| 12 | 0610-753 | HOSE, COOLANT-FILLER TO ENG | 1 | $20.63 | |
| 13 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 14 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 15 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 16 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 17 | 5606-560 | SPACER,5MM-(5/16" OD) | 1 | $3.71 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 0713-119 | TANK,COOLANT-S/P ASSY | 1 | $125.95 | |
| 20 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 21 | 1623-834 | WASHER,RUBBER-12X27X2.4 | 1 | $1.92 | |
| 22 | 2670-132 | FITTING,VENT-90 DEGREE | 1 | $2.95 | |
| 23 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 24 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 25 | 0610-935 | HOSE,COOLANT-8 ID X 1524mm-CTL | 1 | $79.95 | |
| 26 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 27 | 0610-789 | HOSE, COOLANT-BYPASS-FORMED | 1 | $33.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0610-784 | HOSE,COOLANT-EXCH TO FLR NECK | 1 | $60.95 | |
| 30 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 31 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 32 | 0613-014 | UNION,HOSE-.75"X1" | 1 | $3.99 | |
| 33 | 1623-203 | CLAMP,H0SE-CRIMP-28.6 | 1 | $4.54 | |
| 34 | 0610-807 | HOSE,RADIATOR-LH | 1 | $15.95 | |
| 35 | 1619-354 | PROTECTOR,HOSE-1.48X1.25X5' | 1 | $37.95 | |
| 36 | 0613-013 | RADIATOR - ASSY (2009 BC) | 1 | $436.95 | |
| 37 | 0413-045 | SWITCH, SENSOR-TEMP | 1 | $66.95 | |
| 38 | 0745-353 | BRKT,RADIATOR REAR-PTD | 1 | $24.77 | |
| 39 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 40 | 0745-354 | BRKT,RADIATOR RH-PTD | 1 | $22.01 | |
| 40 | 0745-355 | BRKT,RADIATOR LH-PTD | 1 | $22.01 | |
| 41 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 42 | 0413-145 | FAN,COOLING-6" | 1 | $209.95 | |
| 43 | 0610-808 | HOSE,RADIATOR-RH | 1 | $84.95 |
