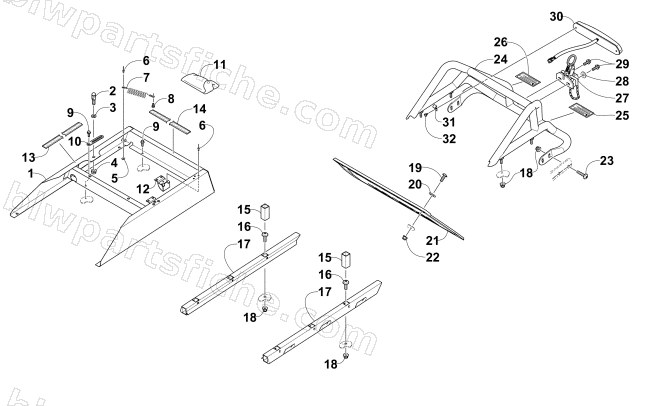

2013 Arctic Cat BEARCAT Z1 XT LTD — REAR BUMPER, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2013 BEARCAT Z1 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-065 | RISER,SEAT-ASSY-PTD BLK | 1 | $174.95 | |
| 2 | 1623-345 | STUD, LATCH- SEAT | 1 | $16.49 | |
| 3 | 1623-083 | NUT,HEX JAM - M10 X 1.25 | 1 | $1.78 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 6 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 7 | 4606-162 | CABLE, SEAT-22.5" | 1 | $24.77 | |
| 8 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 9 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 10 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 11 | 5706-054 | BAG,TOOL KIT-ASSY | 1 | $33.95 | |
| 12 | 0623-579 | HINGE,SEATBASE | 1 | $38.95 | |
| 13 | 5606-802 | SEAL,SEAT BASE (13 1/2")-RISER | 1 | $12.35 | |
| 14 | 5606-803 | SEAL,SEAT BASE (16")-RISER | 1 | $15.11 | |
| 15 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 4706-258 | MOUNT, RACK-RH-PTD BLACK | 1 | $69.95 | |
| 17 | 4706-259 | MOUNT, RACK-LH-PTD BLACK | 1 | $69.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 20 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 21 | 3606-740 | SNOWFLAP-BCWT | 1 | $125.95 | |
| 22 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 23 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 24 | 4706-065 | BUMPER, REAR-PTD BLK | 1 | $362.95 | |
| 25 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 26 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 27 | 4606-156 | HITCH, PINTLE | 1 | $84.95 | |
| 28 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 29 | 8408-832 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/204(RED | 1 | $12.35 | |
| 30 | 0609-887 | TAILLIGHT,LED-1.5" X 9.5" (55" LEAD)RED | 1 | $112.95 | |
| 31 | 1623-786 | CLAMP,WIRE-HALF-3/8"-VINYL COATED | 1 | $16.49 | |
| 32 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 |
