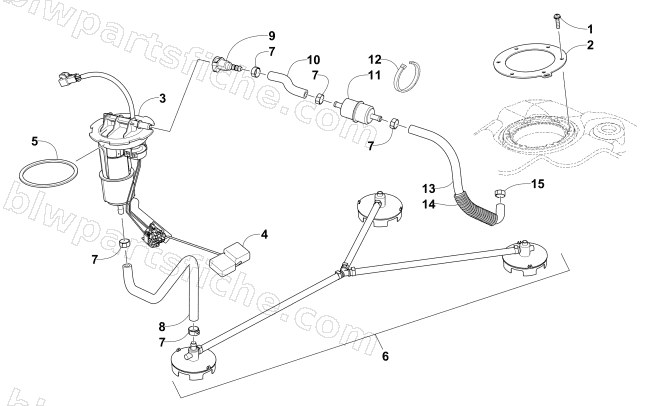

FUEL PUMP ASSEMBLY
2013 F 1100 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 3 | 2670-274 | R/B 2670-476 | 1 | $741.95 | |
| 4 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 2670-377 | PICKUP,FUEL-3MP | 1 | $145.95 | |
| 7 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 8 | 2670-442 | HOSE,FUEL PUMP/PICKUP | 1 | $76.95 | |
| 9 | 2670-141 | FITTING,QUICK CONNECTOR | 1 | $12.35 | |
| 10 | 0610-875 | HOSE,GASLINE-PUMP TO FILTER-FORMED | 1 | $16.49 | |
| 11 | 1670-825 | FILTER,FUEL | 1 | $45.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 13 | 0610-873 | HOSE,GASLINE-FILTER TO ENGINE-FORMED | 1 | $16.49 | |
| 14 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 15 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 |
