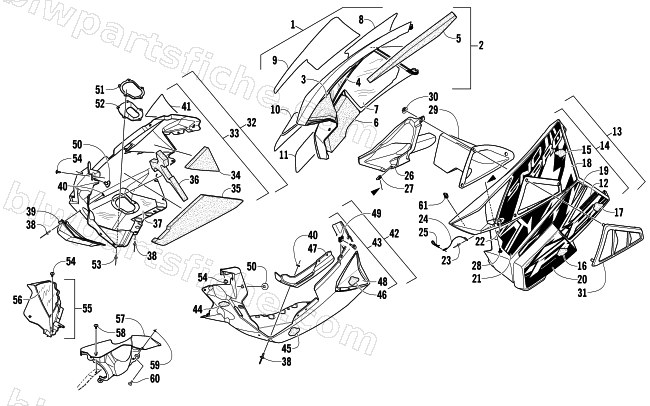

2013 Arctic Cat F 1100 TURBO SNO PRO RR — SKID PLATE AND SIDE PANEL ASSEMBLY
2013 F 1100 TURBO SNO PRO RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-606 | PANEL,SIDE-RH-W/WHT DECALS-SP RR TURBO | 1 | $437.95 | |
| 1 | 3718-652 | PANEL,SIDE-GRN RH-W/DECALS SP RR TRB | 1 | $437.95 | |
| 2 | 3718-454 | PANEL,SIDE-RH WHT-W/FOAM-4 STRK | 1 | $137.95 | |
| 2 | 3718-314 | PANEL,SIDE-RH WITH FOAM-GRN (4 STROKE) | 1 | $274.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 0621-178 | DECAL,SIDE PANEL-UPR RH WHT | 1 | $71.95 | |
| 8 | 0621-104 | DECAL,SIDE PANEL-UPR RH GRN | 1 | $74.95 | |
| 9 | 0621-180 | DECAL,SIDE PANEL-LWR RH WHT | 1 | $74.95 | |
| 9 | 0621-106 | DECAL,SIDE PANEL-LWR RH GRN | 1 | $93.95 | |
| 10 | 0621-184 | DECAL,SIDE PANEL-MID RH WHT | 1 | $26.95 | |
| 10 | 0621-110 | DECAL,SIDE PANEL-MID RH GRN | 1 | $74.95 | |
| 11 | 0621-182 | DECAL,SIDE PANEL-FWD RH WHT | 1 | $46.95 | |
| 11 | 0621-108 | DECAL,SIDE PANEL-FWD RH GRN | 1 | $46.95 | |
| 12 | 0621-200 | DECAL,SIDE PANEL-1100 | 1 | $17.87 | |
| 13 | 3718-607 | PANEL,SIDE-LH-W/GRN DECALS-SP RR TURBO | 1 | $437.95 | |
| 13 | 3718-653 | PANEL,SIDE-WHT LH-W/DECALS SP RR TRB | 1 | $437.95 | |
| 14 | 3718-797 | PANEL,SIDE-LH WITH FOAM-GRN (TURBO) | 1 | $266.95 | |
| 14 | 3718-463 | PANEL,SIDE-LH WHT-W/FOAM-TURBO | 1 | $266.95 | |
| 15 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 18 | 0621-123 | DECAL,SIDE PANEL-UPR LH TURBO GRN | 1 | $66.95 | |
| 18 | 0621-001 | DECAL,SIDE PANEL-UPR LH TURBO WHT | 1 | $66.95 | |
| 19 | 0621-107 | DECAL,SIDE PANEL-LWR LH GRN | 1 | $126.95 | |
| 19 | 0621-181 | DECAL,SIDE PANEL-LWR LH WHT | 1 | $66.95 | |
| 20 | 0621-109 | DECAL,SIDE PANEL-FWD LH GRN | 1 | $49.95 | |
| 20 | 0621-183 | DECAL,SIDE PANEL-FWD LH WHT | 1 | $46.95 | |
| 21 | 0621-111 | DECAL,SIDE PANEL-MID LH GRN | 1 | $45.95 | |
| 21 | 0621-185 | DECAL,SIDE PANEL-MID LH WHT | 1 | $26.95 | |
| 22 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 23 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 24 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 25 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 26 | 2602-457 | DUCT,BELT COOLING-4 STRK | 1 | $46.95 | |
| 27 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 28 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 29 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 30 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 31 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 32 | 3718-802 | PLATE,SKID-RH-W/DECAL-RR | 1 | $217.95 | |
| 33 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 40 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 41 | 0621-196 | DECAL SKID PLATE-RH GRN | 1 | $24.77 | |
| 42 | 3718-803 | R/B 3718-789 | 1 | $135.95 | |
| 43 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 44 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 45 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 46 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 47 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 48 | 0621-197 | DECAL,SKID PLATE-LH GRN | 1 | $24.77 | |
| 49 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 50 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 51 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 52 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 53 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 54 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 55 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 56 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 57 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 58 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 59 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 60 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 61 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
