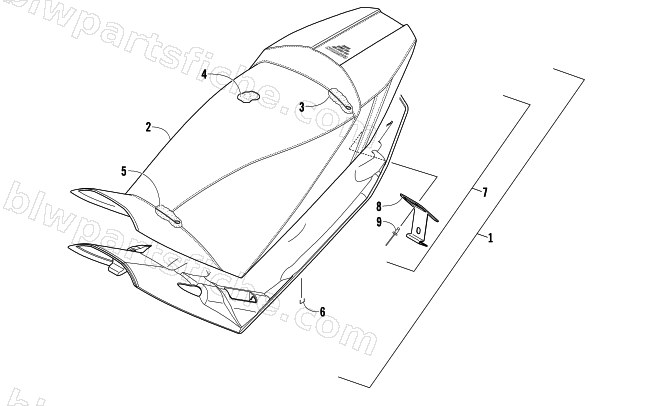

SEAT ASSEMBLY
2013 F 800 SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-407 | SEAT,ASSY-F/XF 800 BLK | 1 | $713.95 | |
| 1 | 5706-406 | SEAT,ASSY-F/XF 800 PC PRL WHT | 1 | $713.95 | |
| 2 | 5706-403 | COVER,SEAT-F/XF 800 BLK | 1 | $432.95 | |
| 2 | 5706-402 | COVER,SEAT-F/XF 800 PC PRL WHT | 1 | $432.95 | |
| 3 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 4 | 0717-202 | FOAM,SEAT (64-70 ILD).48R@3.6 | 1 | $144.95 | |
| 5 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 5706-240 | BASE,SEAT-W/SEAT LATCH HOOK | 1 | $65.95 | |
| 8 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 9 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
