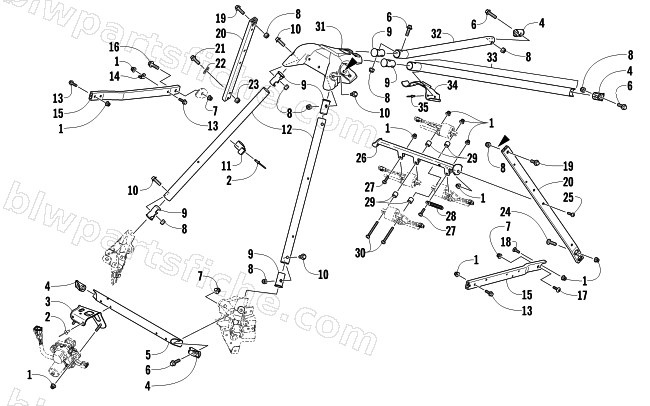

STEERING SUPPORT ASSEMBLY
2013 F 800 TUCKER HIBBERT SIGNATURE EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 4706-845 | BRKT,MTG-SERVO MOTOR-W/STUDS | 1 | $113.95 | |
| 4 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 5 | 1707-582 | TUBE,SUPPORT-SHOCK TOWER-PTD BLK | 1 | $19.95 | |
| 6 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 9 | 1607-094 | R/B 1607-747 | 1 | $4.95 | |
| 10 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 11 | 1623-938 | CLAMP,THROTTLE/FUEL LINE | 1 | $2.47 | |
| 12 | 1707-521 | SPAR,UPR FRT-PTD BLK | 1 | $45.95 | |
| 13 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 14 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 15 | 0607-248 | SPAR,SIDE-RH-2 STROKE | 1 | $54.95 | |
| 15 | 0607-249 | SPAR, SIDE-LH | 1 | $58.95 | |
| 16 | 8408-885 | SCREW,CAP-HFH M8X1.25X85 CL8.8 Z&Y | 1 | $2.75 | |
| 17 | 8476-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&Y | 1 | $9.59 | |
| 18 | 1623-917 | BOLT,CARRIAGE-M6X1.0X20 Z&Y CL 8.8 | 1 | $0.95 | |
| 19 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 20 | 0607-252 | SUPPORT,STEERING-RH | 1 | $77.95 | |
| 20 | 1607-393 | SUPPORT,STEERING-2 STROKE-LH | 1 | $79.95 | |
| 21 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 23 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 24 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 25 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 0708-584 | BRKT,MTG-COIL- WELDT | 1 | $37.95 | |
| 27 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 29 | 1623-041 | SPACER, .325 X .540 X .500 | 1 | $1.92 | |
| 30 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 | |
| 31 | 1707-570 | SUPPORT,STEERING-PTD BLK | 1 | $189.95 | |
| 32 | 1707-566 | SPAR,REAR-RH-PTD BLK | 1 | $74.95 | |
| 33 | 5706-225 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $34.95 | |
| 34 | 6606-391 | BRKT,HOLDOWN-SEATBASE | 1 | $13.73 | |
| 35 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
