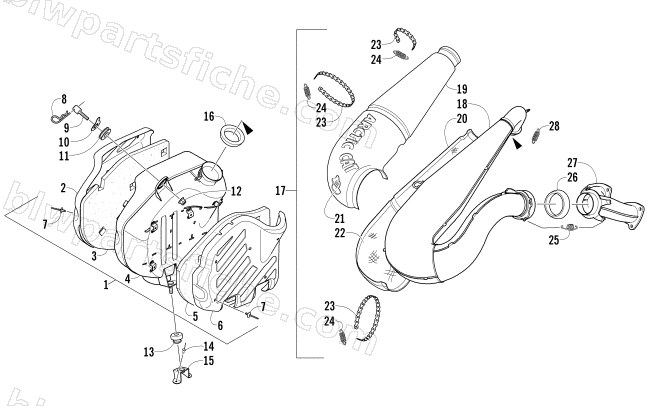

EXHAUST ASSEMBLY
2013 F5
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-455 | RESONATOR,EXHAUST-ASSY(500) | 1 | $982.95 | |
| 2 | 2612-312 | COVER,RESONATOR-EXTERNAL-RH | 1 | $180.95 | |
| 3 | 2612-314 | PACKING,RESONATOR-EXTERNAL RH | 1 | $17.87 | |
| 4 | 1712-456 | RESONATOR,EXHAUST-PTD BLK (500) | 1 | $845.95 | |
| 5 | 2612-315 | PACKING,RESONATOR-EXTERNAL LH | 1 | $17.87 | |
| 6 | 2612-313 | COVER,RESONATOR-EXTERNAL-LH | 1 | $102.95 | |
| 7 | 1623-799 | RIVET,BLIND-LF SD61BSLF ZINC | 1 | $0.95 | |
| 8 | 1623-379 | CLIP,HAIRPIN-5/8 TO 3/4 | 1 | $2.88 | |
| 9 | 2612-247 | PIN,MTG-RES/CHASSIS-1.25 | 1 | $16.49 | |
| 10 | 2612-210 | WASHER,MTG-RESONATOR W/TAB (1.75 OD) | 1 | $20.63 | |
| 11 | 1623-375 | GROMMET,RUBBER-3/4 ID x1 5/8OD x1/4 GRV | 1 | $5.51 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 1612-873 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $4.26 | |
| 14 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 15 | 2612-024 | BRKT,MTG-LWR RES/CHASSIS | 1 | $12.35 | |
| 16 | 1612-066 | GASKET,EXHAUST TAIL PIPE 99/600/B | 1 | $37.95 | |
| 17 | 1712-497 | CHAMBER,EXP-FABR | 1 | $727.95 | |
| 25 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 26 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 | |
| 27 | 1712-312 | MANIFOLD,EXHAUST-MACH | 1 | $187.95 | |
| 28 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 |
