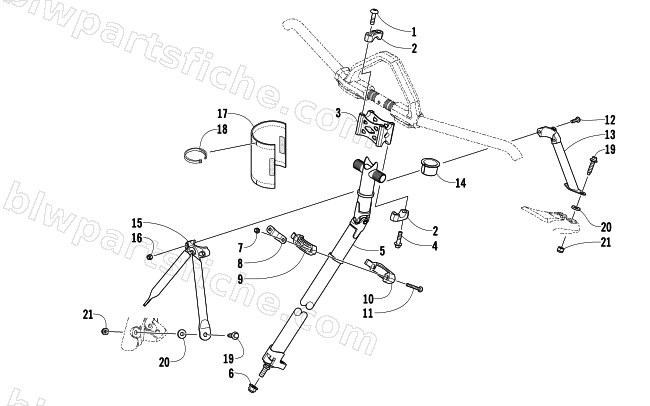

STEERING POST ASSEMBLY
2013 M 1100 TURBO HCR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&Y | 1 | $9.59 | |
| 2 | 1705-461 | CAP,STEERING-PTD BLK | 1 | $15.11 | |
| 3 | 1705-454 | RISER,2.0 HANDLEBAR-PTD BLK | 1 | $56.95 | |
| 4 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 5 | 1705-435 | R/B 1705-456 | 1 | $269.95 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 9 | 1605-043 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 10 | 1605-044 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 11 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 12 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 13 | 1705-441 | SUPPORT,STEERING-REAR-PTD BLK | 1 | $105.95 | |
| 14 | 1705-447 | BEARING,MTG-STEERING POST-MACH | 1 | $16.49 | |
| 15 | 1705-440 | SUPPORT,STEERING-FRONT-PTD BLK | 1 | $124.95 | |
| 16 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 17 | 1705-455 | WRAP,STEERING POST | 1 | $20.63 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 | |
| 20 | 1623-968 | WASHER, ALUM- 8.25mmX 20mmX 3mm THK | 1 | $3.44 | |
| 21 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 |
