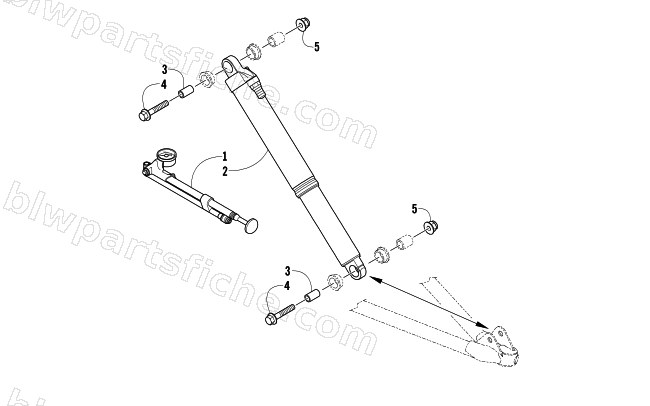

2013 Arctic Cat M 800 SNO PRO 153 — SHOCK ABSORBER ASSEMBLY

2013 M 800 SNO PRO 153

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	2603-614	PUMP,FOX HP W/BLEED-150 PSI (FLOAT2)	1	$69.95
2	2703-951	R/B 3703-256	1	$748.95
3	3604-109	SLEEVE,SHOCK EYELET-10mm ID	1	$4.40
4	8408-050	SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y	1	$2.75
5	8427-002	NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y	1	$0.95
