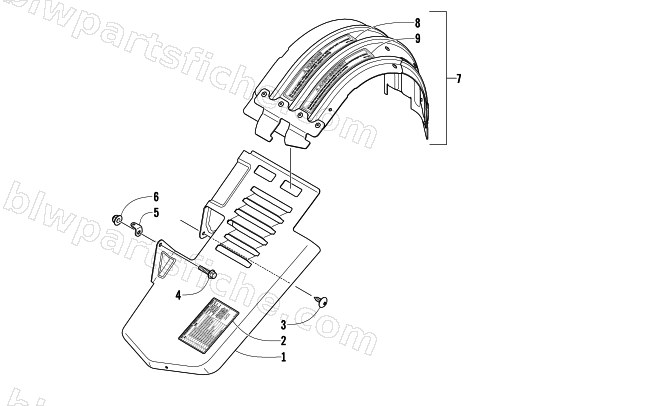

BELT GUARD ASSEMBLY
2013 M 800 SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-434 | GUARD,CLUTCH-FIXED-2 STROKE | 1 | $62.95 | |
| 2 | 9611-743 | DECAL,EFI DIAGNOSTIC CODES | 1 | $6.47 | |
| 3 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 4 | 8408-525 | SCREW,CAP-HFH M5X0.8X25 CL8.8 Z&Y | 1 | $0.95 | |
| 5 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 6 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 7 | 1702-217 | GUARD,CLUTCH-REMOVABLE ASSY | 1 | $50.95 | |
| 8 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 9 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 |
