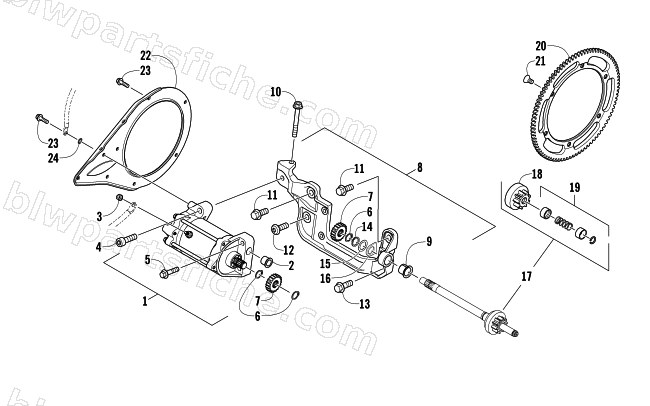

STARTER MOTOR ASSEMBLY
2013 M 800 SNO PRO LTD ES 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-370 | R/B 0745-418 | 1 | $400.95 | |
| 2 | 0645-108 | BUSHING,SHAFT-PINION (OILITE) | 1 | $19.25 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 4 | 1423-093 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $3.30 | |
| 5 | 8408-836 | SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 | 1 | $2.47 | |
| 6 | 0645-638 | RING,RETAINING-EXTERNAL-14mm-SHAFT | 1 | $2.75 | |
| 7 | 0645-678 | GEAR,STARTER-20T-9.52MM | 1 | $22.01 | |
| 8 | 0745-361 | BRKT, STARTER W/BUSHING-ASSY | 1 | $105.95 | |
| 9 | 0645-717 | BUSHING, PINION SHAFT | 1 | $5.09 | |
| 10 | 1623-945 | SCREW,CAP-HFH-M8X1.25X65 CL 10.9 | 1 | $6.89 | |
| 11 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 12 | 1623-963 | SCREW,MACH-TSTRH M10X1.25X30 Z&Y/CL 10.9 | 1 | $4.26 | |
| 13 | 8409-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $3.16 | |
| 14 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 15 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 16 | 0645-693 | WASHER,THRUST-16ID X 23.2 OD X 2.66mm | 1 | $35.95 | |
| 17 | 0745-404 | R/B 0745-424 | 1 | $285.95 | |
| 18 | 0645-686 | GEAR,PINION-10T | 1 | $102.95 | |
| 19 | 0745-398 | STOPPER,PINION-KIT | 1 | $43.95 | |
| 20 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 21 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 | |
| 22 | 0645-694 | PLATE,MTG-STARTER MOTOR | 1 | $46.95 | |
| 23 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 24 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
