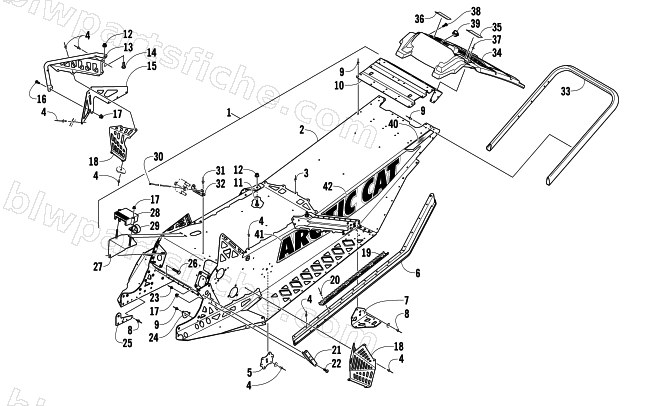

2013 Arctic Cat SNO PRO 500 — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2013 SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-785 | CHASSIS,ASSY-PTD PRL CAT GRN | 1 | $2,712.95 | |
| 2 | 2707-169 | TUNNEL,REAR-PTD PC GRN | 1 | $294.95 | |
| 3 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 4 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 5 | 1607-090 | PLATE,BACKING-FRT ARM | 1 | $8.21 | |
| 6 | 2707-164 | ROLL,TUNNEL-RH FORMED-PTD PC GRN | 1 | $84.95 | |
| 6 | 2707-165 | ROLL,TUNNEL-LH FORMED-PTD PC GRN | 1 | $84.95 | |
| 7 | 2707-166 | BRKT,SUSPENSION MTG-RH-REAR-PTD PC GRN | 1 | $37.95 | |
| 7 | 2707-167 | BRKT,SUSPENSION MTG-LH-REAR-PTD PC GRN | 1 | $37.95 | |
| 8 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 9 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 10 | 2707-168 | PLATE,REAR TUNNEL-CLOSE OFF-PTD PC GRN | 1 | $74.95 | |
| 11 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 4706-514 | HOOK,TOE-RH PTD BLK | 1 | $73.95 | |
| 13 | 4706-515 | HOOK,TOE-LH PTD BLK | 1 | $73.95 | |
| 14 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 15 | 4706-510 | GUSSET,TOE STOP-RH PTD BLK | 1 | $42.95 | |
| 15 | 4706-511 | GUSSET,TOE STOP-LH PTD BLK | 1 | $42.95 | |
| 16 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 4706-516 | SHIELD,TOE-RH PTD BLK | 1 | $69.95 | |
| 18 | 4706-517 | SHIELD,TOE-LH PTD BLK | 1 | $69.95 | |
| 19 | 4706-307 | PLATE,GRIP-PTD GRN | 1 | $51.95 | |
| 20 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 21 | 0608-585 | BRKT,SNUBBER-CHASSIS-MACH | 1 | $23.39 | |
| 22 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 23 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 24 | 5606-672 | PLATE,BACKING-PTO MTG-Z&Y | 1 | $13.73 | |
| 25 | 5606-628 | BRACE,SUPPORT-INNER-Z&Y | 1 | $33.95 | |
| 26 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 27 | 4706-794 | PANEL,ELECTRICAL-MFG ASSY | 1 | $17.87 | |
| 28 | 0630-323 | REGULATOR/RECTIFIER | 1 | $183.95 | |
| 29 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 32 | 5606-536 | BRKT,MTG-COIL | 1 | $24.77 | |
| 33 | 4706-777 | BUMPER,REAR-PTD BLK | 1 | $56.95 | |
| 34 | 5606-525 | SNOWFLAP,LONG-INJ MOLD | 1 | $124.95 | |
| 35 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 36 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 1623-343 | CLIP, X-MAS TREE | 1 | $1.78 | |
| 39 | 5606-988 | PLUG,HOLE-1 INCH | 1 | $1.37 | |
| 40 | 8611-676 | DECAL,REFLECTOR-RED RH | 1 | $20.63 | |
| 40 | 8611-677 | DECAL,REFLECTOR-RED LH | 1 | $20.63 | |
| 41 | 0621-156 | DECAL,TUNNEL-FWD RH | 1 | $45.95 | |
| 41 | 0621-157 | DECAL,TUNNEL-FWD LH | 1 | $45.95 | |
| 42 | 0621-158 | DECAL,TUNNEL-REAR RH | 1 | $86.95 | |
| 42 | 0621-159 | DECAL,TUNNEL-REAR LH | 1 | $86.95 |
