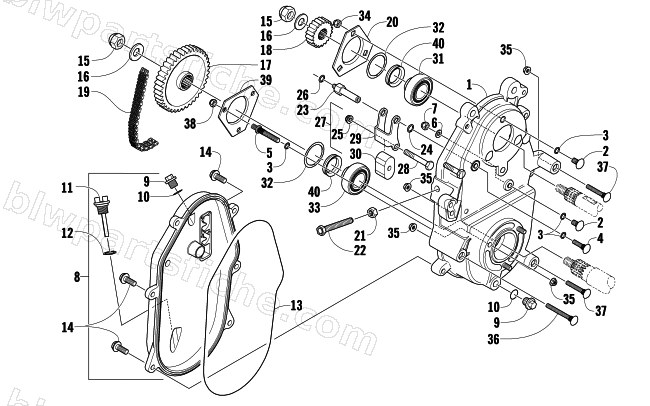

DRIVE/DROPCASE ASSEMBLY
2013 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-628 | DROPCASE, W/STUDS | 1 | $184.95 | |
| 2 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 3 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 4 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 5 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 6 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 7 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 8 | 7998-488 | COVER,DROPCASE-MFG ASSY | 1 | $108.95 | |
| 9 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 10 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 11 | 0602-462 | STICK,CHECK-OIL LEVEL | 1 | $10.97 | |
| 12 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 13 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 14 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 15 | 1623-923 | NUT,HEX FLG-NY LOCK 1/2-20 GR F Z&C | 1 | $1.50 | |
| 16 | 1623-922 | WASHER,SPRING-BELLEVILLE | 1 | $12.35 | |
| 17 | 2602-074 | SPROCKET,BORG WARNER-46T(13 WIDE) | 1 | $163.95 | |
| 18 | 1602-600 | SPROCKET,BORG WARNER-20T(15 WIDE) | 1 | $156.95 | |
| 19 | 1602-774 | CHAIN,BORG WARNER-74P(15 WIDE)8620 PIN | 1 | $292.95 | |
| 20 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 21 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 22 | 1602-101 | SCREW, CHAIN,ROLLER | 1 | $5.95 | |
| 23 | 1602-864 | PIVOT,TENSIONER-MACH | 1 | $74.95 | |
| 24 | 1602-855 | O-RING,.412 ID X .210 | 1 | $0.95 | |
| 25 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 26 | 1602-322 | O-RING,2-203 | 1 | $2.61 | |
| 27 | 0702-833 | ADJUSTER,CHAIN-MANUAL ASSY | 1 | $84.95 | |
| 28 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 29 | 0605-812 | BRKT,CHAIN ROLLER | 1 | $22.01 | |
| 30 | 1602-963 | PAD,TENSIONING | 1 | $84.95 | |
| 31 | 2602-393 | BEARING,1 INCH (W/O-RING) | 1 | $41.95 | |
| 32 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 33 | 2602-389 | BEARING,1 1/16-DRIVESHAFT | 1 | $50.95 | |
| 34 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 35 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 36 | 1623-121 | BOLT,CRG-5/16-18X3.12 GR 2 Z&Y | 1 | $8.21 | |
| 37 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 38 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 39 | 0602-932 | PLATE,FLANGE-BRG. | 1 | $15.11 | |
| 40 | 2602-229 | SEAL,BEARING-DROPCASE | 1 | $1.79 |
