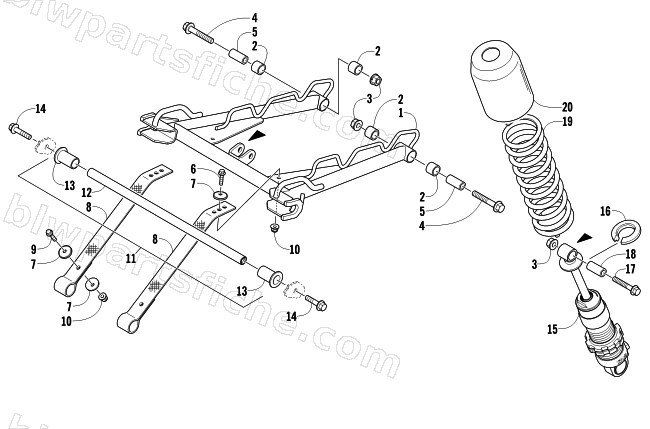

REAR SUSPENSION FRONT ARM ASSEMBLY
2013 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-910 | ARM,FRONT-FABR | 1 | $375.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 7 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 8 | 3604-478 | STRAP,LIMITER-1.25" X 17.1" | 1 | $19.25 | |
| 9 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 1704-909 | AXLE,FRT ARM ASSY-W/BUSHINGS | 1 | $93.95 | |
| 12 | 3604-554 | AXLE,FRONT ARM | 1 | $77.95 | |
| 13 | 3604-555 | BUSHING,AXLE | 1 | $27.95 | |
| 14 | 1623-903 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $3.85 | |
| 15 | 2704-039 | SHOCK,FRT ARM-FOX | 1 | $218.95 | |
| 16 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 17 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 18 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 19 | 1704-736 | SPRING,COMP - 90/250# X 8.25"-PTD BLK | 1 | $32.95 | |
| 20 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 |
