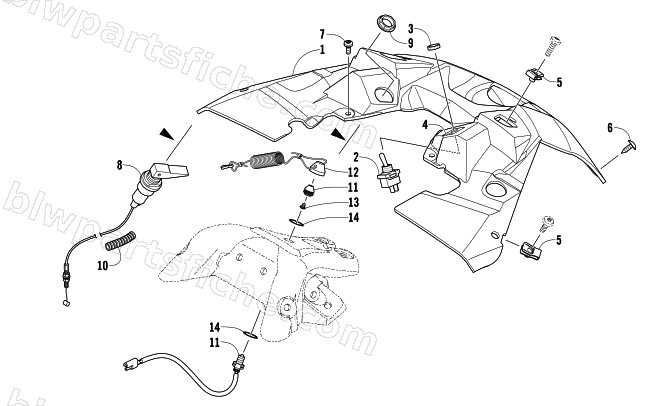

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — CONSOLE AND SWITCH ASSEMBLY
2013 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-484 | CONSOLE,UPPER-BLK | 1 | $193.95 | |
| 2 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 3 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 4 | 9611-053 | DECAL,TOGGLE SWITCH | 1 | $19.25 | |
| 5 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 8 | 0687-228 | CABLE,CHOKE | 1 | $81.95 | |
| 9 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 10 | 1619-220 | LOOM,HIGH TEMP-1/4 X 11" | 1 | $20.63 | |
| 11 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 12 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 14 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
