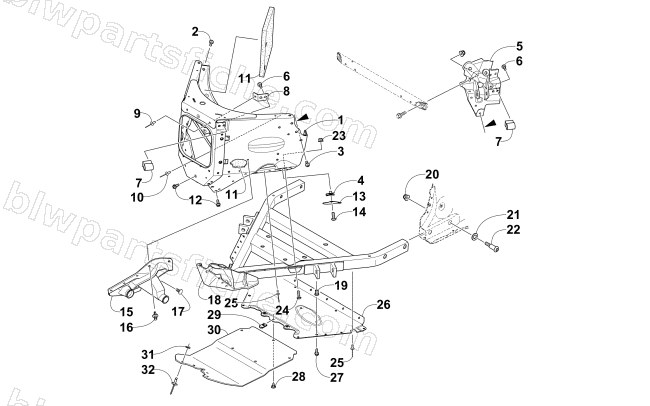

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — FRONT BUMPER AND FRAME ASSEMBLY
2013 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-888 | R/B 2707-490 | 1 | $481.95 | |
| 2 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 3 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 4 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 5 | 1707-776 | HOUSING,A-ARM/SHOCK MTG-RH-PTD BLK | 1 | $106.95 | |
| 5 | 1707-777 | HOUSING,A-ARM/SHOCK MTG-LH-PTD BLK | 1 | $101.95 | |
| 6 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 7 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 8 | 1607-211 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $6.47 | |
| 9 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 10 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 11 | 0617-148 | FOAM,FRONT PANEL-RH | 1 | $6.47 | |
| 11 | 0617-149 | FOAM,FRONT PANEL-LH | 1 | $6.47 | |
| 12 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 13 | 1707-568 | COVER,SWAY BAR-PTD BLK | 1 | $5.95 | |
| 14 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 15 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 15 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 16 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 17 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 18 | 1707-867 | FRAME, LOWER-RACE-PTD TEAM ARC GRN | 1 | $448.95 | |
| 19 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 20 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 2623-009 | WASHER,FLAT-.505ID X .700OD X .060 THK | 1 | $1.09 | |
| 22 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 26 | 1607-213 | BELLYPAN,CENTER-STAMPED | 1 | $56.95 | |
| 27 | 8476-520 | SCREW,MACH-TSTRH M5X0.8X20 Z&Y | 1 | $1.64 | |
| 28 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 29 | 1623-052 | NUT,U | 1 | $0.95 | |
| 30 | 1607-186 | PANEL,ACCESS-SKID PLATE | 1 | $34.95 | |
| 31 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 32 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
