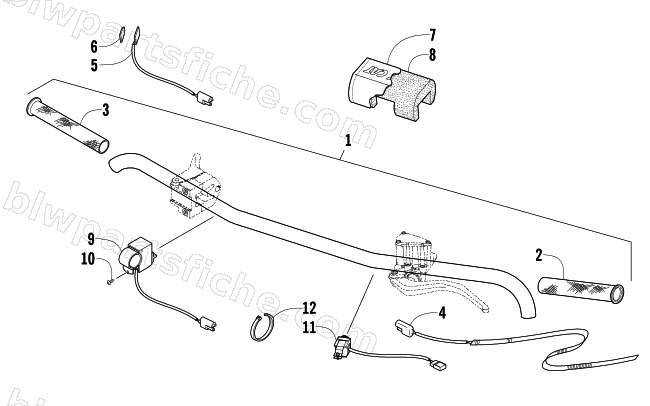

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — HANDLEBAR ASSEMBLY
2013 SNO PRO 600 CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-450 | HANDLEBAR W/HOOKS-SP ASSY-BLK | 1 | $275.95 | |
| 1 | 1705-451 | HANDLEBAR,HD W/HOOKS-SP ASSY-BLK | 1 | $275.95 | |
| 2 | 2606-400 | GRIP, HANDLEBAR-LH-8.00" | 1 | $17.87 | |
| 3 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 4 | 0609-644 | ELEMENT,HW-RH STRIP W/#21 | 1 | $113.95 | |
| 4 | 0609-645 | ELEMENT,HW-LH STRIP W/#21 | 1 | $113.95 | |
| 5 | 0609-646 | ELEMENT, HEATER - TW W/ #21 | 1 | $74.95 | |
| 6 | 0617-670 | PAD,INSULATOR-THUMB WARMER | 1 | $9.59 | |
| 7 | 1705-453 | WRAP,HANDLEBAR - ASSY | 1 | $54.95 | |
| 8 | 0605-986 | FOAM,HANDLEBAR | 1 | $19.25 | |
| 9 | 0609-471 | SWITCH,STOP-ENGINE (SLIDE) | 1 | $78.95 | |
| 10 | 8477-510 | SCREW,MACH-TSTRH M5X0.8X10 Z&BLK | 1 | $2.47 | |
| 11 | 0609-643 | SWITCH,PB-TIMING | 1 | $66.95 | |
| 12 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
