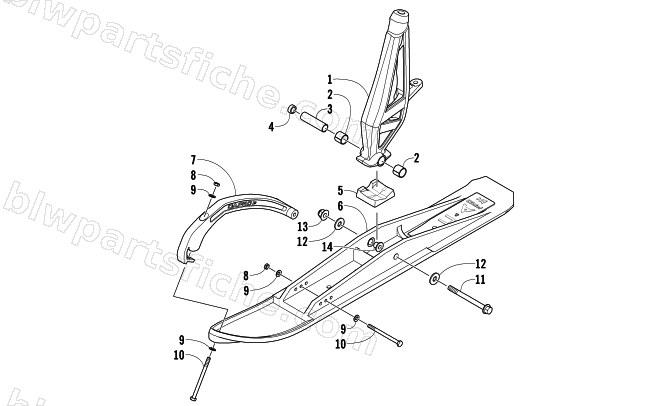

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — SKI AND SPINDLE ASSEMBLY
2013 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-066 | SPINDLE,RH-BLK FABR | 1 | $307.95 | |
| 1 | 3703-067 | SPINDLE,LH-BLK FABR | 1 | $307.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 4 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 5 | 3603-245 | DAMPER,SKI-RUBBER | 1 | $19.25 | |
| 6 | 3703-094 | SKI,PLASTIC-W/LOOP-ADX ASSY | 1 | $442.95 | |
| 7 | 2603-708 | SKI,HANDLE (PRIDE) | 1 | $121.95 | |
| 8 | 0623-928 | NUT, HEX-NSL 5/16-18 Z&C | 1 | $0.95 | |
| 9 | 0623-927 | WASHER,FLAT-5/16 ID X .688 X .065 Z&C | 1 | $0.26 | |
| 10 | 1623-684 | SCREW,CAP-HH 5/16-18X4 1/2 GR8 Z&C | 1 | $13.73 | |
| 11 | 1623-996 | SCREW,CAP-HFH-M10-1.25 X 130 Z&Y | 1 | $21.95 | |
| 12 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 13 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 3603-256 | INSERT,SKI-M10 | 1 | $12.35 |
