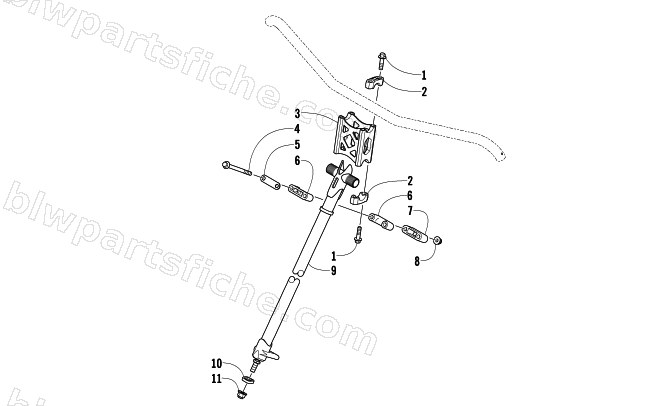

STEERING POST ASSEMBLY
2013 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 2 | 1605-118 | CAP,STEERING | 1 | $5.65 | |
| 3 | 1605-112 | RISER,HANDLEBAR-3.5 RACE-MACH | 1 | $97.95 | |
| 3 | 1605-086 | RISER,2.0 HANDLEBAR-MACH | 1 | $84.95 | |
| 3 | 1605-063 | RISER,3 HANDLEBAR-MACH | 1 | $97.95 | |
| 3 | 1605-035 | RISER,4.5" HANDLEBAR-MACH | 1 | $97.95 | |
| 3 | 1605-073 | RISER,5.5" HANDLEBAR-MACH | 1 | $105.95 | |
| 3 | 1605-034 | RISER,6.5 HANDLEBAR-MACH | 1 | $113.95 | |
| 3 | 1605-070 | RISER,7.5" HANDLEBAR-MACH | 1 | $116.95 | |
| 3 | 1605-071 | RISER,8.5" HANDLEBAR-MACH | 1 | $116.95 | |
| 4 | 8408-800 | SCREW,CAP-HFH M8X1.25X100 CL8.8 Z&Y | 1 | $1.78 | |
| 5 | 0605-722 | PLATE,RETAINING-STEERING POST | 1 | $22.01 | |
| 6 | 0605-576 | BLOCK,MTG-STEERING POST | 1 | $6.75 | |
| 7 | 1605-092 | SPACER,MTG BLOCK-ADJ STEERING-26MM | 1 | $17.87 | |
| 7 | 1605-095 | SPACER,MTG BLOCK-ADJ STEERING-13MM | 1 | $90.95 | |
| 7 | 1605-096 | SPACER,MTG BLOCK-ADJ STEERING-39MM | 1 | $86.95 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 1705-459 | POST,STEERING-PTD BLACK | 1 | $192.95 | |
| 10 | 1605-089 | SPACER,BALLJOINT STUD-LWR | 1 | $32.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
