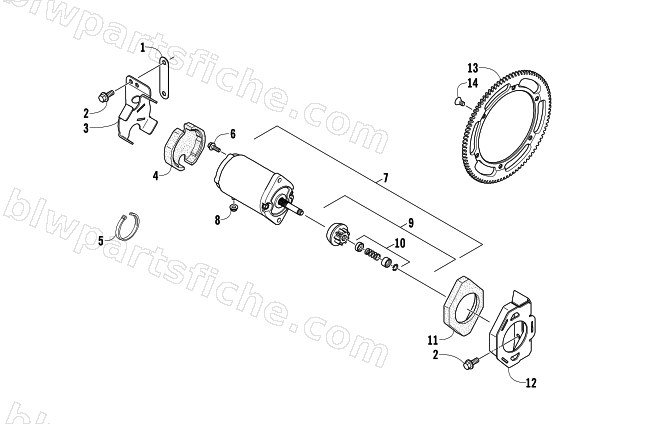

ELECTRIC START - STARTER MOTOR ASSEMBLY
2013 T570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0645-724 | SHIM,STARTER MOTOR | 1 | $3.16 | |
| 2 | 1623-553 | SCREW, CAP-HFH 5/16-18 X .750 W/2353 | 1 | $1.37 | |
| 3 | 0745-334 | BRKT,MTG-STARTER-RH-PTD BLK-570 | 1 | $228.95 | |
| 4 | 0645-568 | ISOLATOR, STARTER MTG-RH | 1 | $23.39 | |
| 5 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 5 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 6 | 0623-892 | SCREW,SELF TAP-HWH 1/4-20X1/2 | 1 | $0.95 | |
| 7 | 6639-631 | R/B 0745-434 | 1 | $479.95 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 0745-381 | DRIVE,PINION-KIT | 1 | $106.95 | |
| 11 | 0645-569 | ISOLATOR, STARTER MTG-LH | 1 | $23.39 | |
| 12 | 0745-335 | BRKT,MTG-STARTER-LH-PTD BLK-570 | 1 | $217.95 | |
| 13 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 14 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
