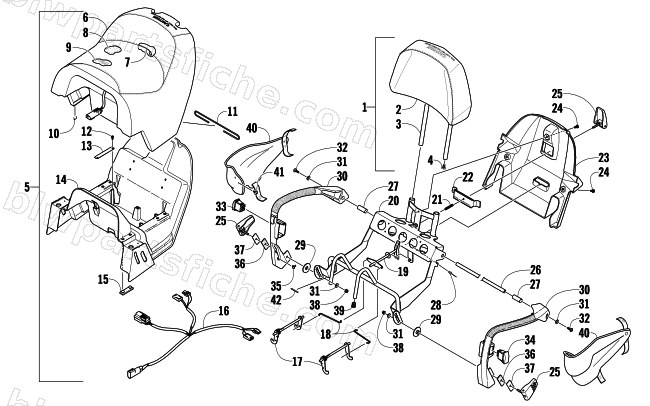

PASSENGER SEAT AND BACKREST ASSEMBLY
2013 TZ1 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-348 | BACKREST-W/COVER-MFG ASSY | 1 | $316.95 | |
| 2 | 5706-347 | COVER,BACKREST | 1 | $244.95 | |
| 3 | 5606-082 | BACKREST-W/ OVERMOLD | 1 | $191.95 | |
| 4 | 1623-732 | CLIP, CHRISTMAS TREE-3/8" | 1 | $1.50 | |
| 5 | 5706-346 | SEAT,REAR-LEVER ADJ-W/HD/ST WARM- ASSY | 1 | $1,671.95 | |
| 6 | 5706-345 | COVER,SEAT-PASSENGER-LXR | 1 | $212.95 | |
| 8 | 3706-738 | FOAM, SEAT-PASS-TOUR .40R@3.8 | 1 | $131.95 | |
| 9 | 0609-869 | PAD, SEAT HEATER | 1 | $192.95 | |
| 10 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 11 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 | |
| 12 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 13 | 5606-178 | RETAINER, SEAT LATCH-REAR | 1 | $16.49 | |
| 14 | 4606-290 | BASE, SEAT-REAR | 1 | $132.95 | |
| 15 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 16 | 1686-570 | HARNESS, PASS SEAT-W/HAND&SEATWARMER | 1 | $58.95 | |
| 17 | 4706-194 | ROD,LATCH - W/SPRING - RH WELDT | 1 | $23.39 | |
| 17 | 4706-195 | ROD,LATCH - W/SPRING - LH WELDT | 1 | $23.39 | |
| 18 | 5606-204 | ROD, CROSS | 1 | $2.06 | |
| 19 | 4706-090 | ROD, HANDLE-PTD BLK | 1 | $42.95 | |
| 20 | 3706-808 | FRAME, SEAT-PASS-PTD-08 TOUR | 1 | $211.95 | |
| 21 | 5606-095 | SPRING,ADJUSTMENT | 1 | $2.19 | |
| 22 | 3706-806 | PLATE, CLAMP-REAR BACKREST-PTD-08 TOUR | 1 | $54.95 | |
| 23 | 4606-291 | PANEL,SEAT BASE-PASSENGER | 1 | $60.95 | |
| 24 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 25 | 5606-086 | LEVER, HAND HOLD | 1 | $34.95 | |
| 26 | 5606-020 | ROD, PIVOT-HANDLE-08 TOUR | 1 | $32.95 | |
| 27 | 5606-018 | SPACER, PIVOT-HANDLE-08 TOUR | 1 | $19.25 | |
| 28 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 29 | 4706-075 | SPACER, LATCH-PTD BLK | 1 | $17.87 | |
| 30 | 4706-532 | HAND HOLD, RH- W/HANDWARMER-MACH | 1 | $141.95 | |
| 30 | 5606-085 | HAND HOLD, LH- W/HANDWARMER | 1 | $141.95 | |
| 31 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 32 | 1623-789 | SCREW,MACH-TSTRH M6X1.0X20 RIEBLK W/2510 | 1 | $6.06 | |
| 33 | 0609-835 | SWITCH, PASS-HAND WARMER | 1 | $69.95 | |
| 34 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 35 | 1623-703 | CLIP, SPEED-WIRE RETAINER | 1 | $2.33 | |
| 36 | 1623-735 | WASHER,FRICTION | 1 | $4.26 | |
| 37 | 1623-734 | WASHER | 1 | $3.44 | |
| 38 | 8040-396 | NUT,HEX LOCK-NYL 1/4-28 Z&Y | 1 | $0.26 | |
| 39 | 1623-697 | PLUG, TUBE-1/2" | 1 | $3.57 | |
| 40 | 5606-212 | WINDGUARD-RH | 1 | $69.95 | |
| 40 | 5606-213 | WINDGUARD-LH | 1 | $69.95 | |
| 41 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 42 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 |
