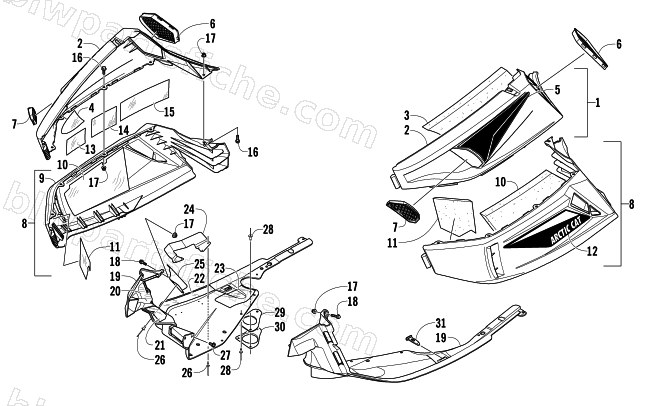

2013 Arctic Cat TZ1 LXR — SKID PLATE AND SIDE PANEL ASSEMBLY
2013 TZ1 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-790 | PANEL,SIDE-UPPER-RH W/DECALS | 1 | $252.95 | |
| 1 | 3718-801 | PANEL,SIDE-UPR-BLK-LH W/DECALS | 1 | $252.95 | |
| 2 | 3718-404 | PANEL,SIDE-UPR RH W/O DECALS | 1 | $219.95 | |
| 2 | 3718-385 | PANEL,SIDE-UPR-LH-MET BLK W/O DECALS | 1 | $225.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 9611-778 | DECAL,SIDE PANEL-UPR-RH-BLK | 1 | $85.95 | |
| 5 | 9611-779 | DECAL,SIDE PANEL-UPR-LH-BLK | 1 | $82.95 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 7 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 3718-798 | PANEL,SIDE-LWR-BLK-RH W/DECALS | 1 | $287.95 | |
| 8 | 3718-799 | PANEL,SIDE-LWR-BLK-LH W/DECALS | 1 | $287.95 | |
| 9 | 2718-930 | PANEL,SIDE-LWR RH W/O DECALS-BLK | 1 | $291.95 | |
| 9 | 2718-349 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $298.95 | |
| 10 | 6606-212 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR FRT | 1 | $2.75 | |
| 10 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 11 | 6606-214 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR REAR | 1 | $5.09 | |
| 11 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 12 | 9611-780 | DECAL,SIDE PANEL-LWR-RH-BLK | 1 | $36.95 | |
| 12 | 9611-781 | DECAL,SIDE PANEL-LWR-LH-BLK | 1 | $38.95 | |
| 13 | 6606-219 | FOIL,PROTECTIVE-127X191 | 1 | $4.54 | |
| 14 | 6606-218 | FOIL,PROTECTIVE-102X152 | 1 | $3.44 | |
| 15 | 6606-220 | FOIL,PROTECTIVE-127X343 | 1 | $6.34 | |
| 16 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 4706-772 | PLATE,SKID-BLK RH-ROUTED | 1 | $54.95 | |
| 19 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 20 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 21 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 22 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 23 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 24 | 6606-227 | SHIELD,HEAT-SKID PLATE-RH | 1 | $26.95 | |
| 25 | 6606-423 | SHIELD,HEAT-HINGE | 1 | $12.35 | |
| 26 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 29 | 2612-469 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $15.11 | |
| 30 | 1712-594 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $30.95 | |
| 31 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
