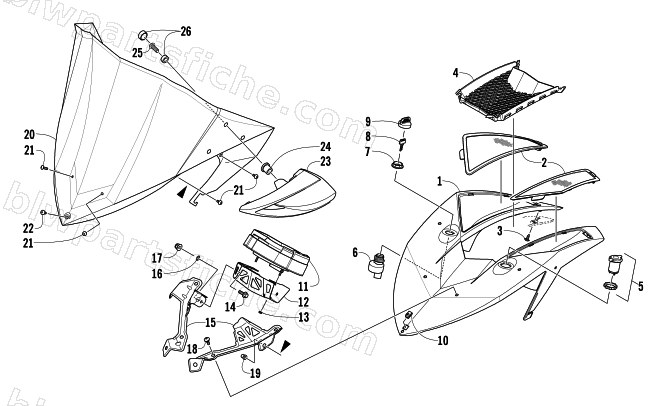

WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2013 XF 1100 CROSS-TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-532 | COWL,HEADLIGHT-4STRK BLK-ROUTED | 1 | $145.95 | |
| 1 | 5706-533 | COWL,HEADLIGHT-4STRK ORN-ROUTED | 1 | $150.95 | |
| 2 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 2 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 3 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 4 | 6606-556 | VENT,POD | 1 | $33.95 | |
| 5 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 6 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 7 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 8 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 8 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 9 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 10 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 11 | 0620-368 | SPEEDO,LCD-4 STROKE MTN/CROSS CALIB-DLX | 1 | $752.95 | |
| 12 | 5706-252 | BRKT,GAUGE-CENTER-PTD BLK | 1 | $32.95 | |
| 13 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 14 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 15 | 5706-250 | BRKT,GAUGE-RH-PTD BLK | 1 | $22.01 | |
| 15 | 5706-251 | BRKT,GAUGE-LH-PTD BLK | 1 | $22.01 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 20 | 6606-514 | WINDSHIELD,MID CRUISER W/ HOLES | 1 | $192.95 | |
| 21 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 22 | 8477-510 | SCREW,MACH-TSTRH M5X0.8X10 Z&BLK | 1 | $2.47 | |
| 23 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 |
