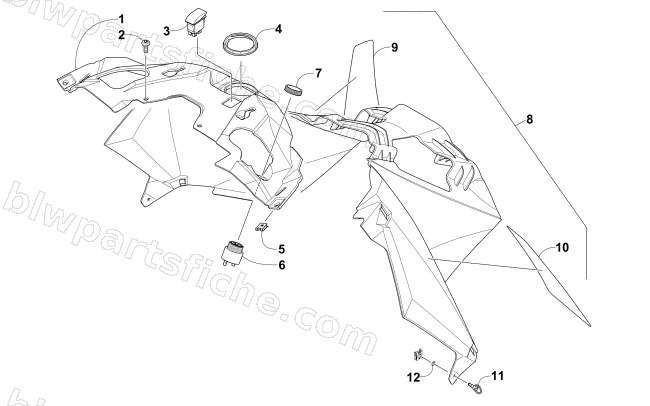

CONSOLE ASSEMBLY
2013 XF 1100 TURBO LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-161 | CONSOLE,4 STROKE-BLK-ROUTED | 1 | $79.95 | |
| 2 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 3 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 4 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 | |
| 5 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 6 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 7 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 8 | 3718-153 | CONSOLE,LWR-W/WARNING DECALS | 1 | $185.95 | |
| 9 | 9611-498 | DECAL,WARNING-FRENCH | 1 | $13.73 | |
| 10 | 9611-499 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 11 | 1623-746 | STUD, 1/4 TURN-9.8MM | 1 | $6.75 | |
| 12 | 1623-747 | RETAINER, RING-SPLIT | 1 | $2.88 |
