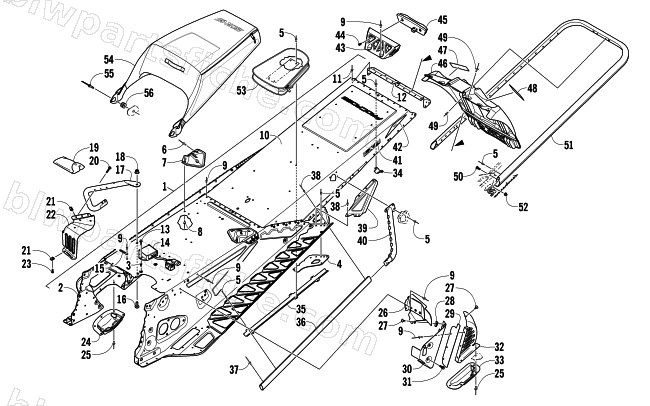

2013 Arctic Cat XF 1100 TURBO LXR — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2013 XF 1100 TURBO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-883 | CHASSIS,141 4 STRK-S/P ASSY-PTD BLK | 1 | $2,646.95 | |
| 1 | 1707-896 | TUNNEL,XF-141-S/P ASSY-PTD BLK | 1 | $1,077.95 | |
| 2 | 1707-894 | TUNNEL,FRONT-ASSY-PTD BLK | 1 | $718.95 | |
| 3 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 4 | 2707-244 | BRKT,REAR SUSP-OUTER-RH-PTD BLK | 1 | $26.95 | |
| 4 | 2707-245 | BRKT,REAR SUSP-OUTER-LH-PTD BLK | 1 | $26.95 | |
| 5 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 6 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 8 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 9 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 1707-838 | TUNNEL,REAR-141-PTD BLK | 1 | $169.95 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 14 | 0630-288 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 17 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 0744-064 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $67.95 | |
| 20 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 22 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 24 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 25 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 26 | 1702-278 | MOUNT,CLUTCH GUARD-ASSY | 1 | $27.95 | |
| 27 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 28 | 1623-052 | NUT,U | 1 | $0.95 | |
| 29 | 1707-639 | GUARD,TOE-PTD BLK | 1 | $12.35 | |
| 30 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 31 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 32 | 1707-563 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $70.95 | |
| 33 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 34 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 35 | 0630-309 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $16.49 | |
| 36 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 37 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 38 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 39 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 39 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 40 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 40 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 41 | 9611-972 | DECAL,TUNNEL-LXR-BLK | 1 | $22.01 | |
| 41 | 9611-988 | DECAL,TUNNEL-LXR-GRN | 1 | $15.11 | |
| 42 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 43 | 0730-164 | R/B 0730-227 | 1 | $31.95 | |
| 44 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 45 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 46 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 47 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 48 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 49 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 50 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 51 | 2707-584 | BUMPER,REAR-137"-PTD-BLK | 1 | $101.95 | |
| 51 | 2707-440 | BUMPER,REAR-137"/141" PTD PRL CAT GRN | 1 | $112.95 | |
| 52 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 53 | 6606-615 | BAG,BELT | 1 | $46.95 | |
| 54 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 55 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 56 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
